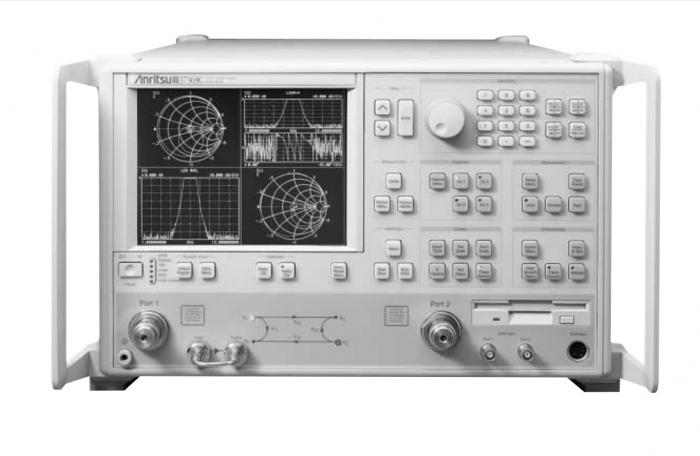

Anritsu 37269A Vector Network Analyzer

Anritsu developed the 37269A Vector Network Analyzer. In the event that the 37269A identifies an issue amid typical operation, an error message comprising of a mistake code will be shown on the screen. The mistake code will likewise be composed to the administration log, alongside a portion of the working information accumulated from the framework at the season of disappointment. Framework mistake codes in the range 0100 - 3999 distinguish the presumed flopped subassembly in the two highest digits of the error code. For instance: error codes 0200 - 0299 are identified with the A2, LO2 PCB get together. This error code task takes into consideration the ID of suspect congregations.

Because of the 37269A phase-lock loop structure, it is difficult to recognize failures that happen in the Source Module, the Test Set Module, and the Receiver Module. Keeping in mind the end goal to investigate disappointments happening in this gathering of modules, it is fundamental to be comfortable with how every module communicates with alternate modules. The 37269A model assemblies contain circuits that are a piece of the signal source stage phase-lock loop.

Failures happening in the Source Module, Test Set Module, and Receiver Module will by and large enable the framework to deliver "Stage Lock Fail" mistake codes. Included with the Phase Lock Fail mistake codes are postfixes that demonstrate the likely broken-down part.

The manual for this model is available on the ApexWaves.com website.
