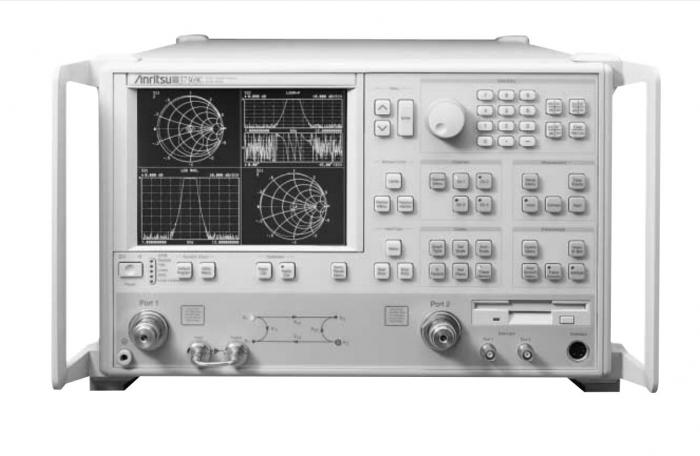

Anritsu 37325A Vector Network Analyzer

The Anritsu 37325A is a micro processed controlled Vector Network Analyzer. This instrument has a Frequency Range between 40.0 MHz to 13.5 GHz and contains an inherent signal source, a test set, and an analyzer subsystem.

The 37325A plays out these estimations by sourcing a boost signal to the Device Under Test (DUT) that is associated with the front board Port 1 or potentially Port2 connectors. At the same time, it measures the DUT reaction, which comprises of reflected as well as transmitted (lessened, or intensified) signals at the connectors of the DUT. The reflected and additionally transmitted signal(s) and an example of the jolt signal are changed into their vector parts. The resultant vector segments are measured and changed over into computerized data. This advanced data is sent to the Main Processor PCB where the coveted S-parameter information is standardized and after that introduced to the client by means of the front board display. The shown data is sent to the back-board VGA Out connector for use with an outside VGA screen. The standardized estimation data is additionally sent to the back-board Printer Out connector for use with an outside printer as well as plotter.

A front board keypad, a turning handle, and an IBM console interface allow user interaction with the 37325A Main Processor PCB.

The framework is furnished with an inner hard disk and floppy drives and battery upheld inward recollections for capacity and recovery of information and front board setup data.

If you are interested in this model, you should read its manual, which is also available on the ApexWaves.com website.
