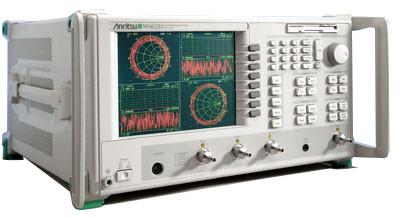

Anritsu 37247B Vector Network Analyzer

The Anritsu 37247B is a portable Microwave Vector Network Analyzer that provides error-free S-parameter measurements. It functions in the 40 MHz to 20 GHz range and tests devices passively. With the Anritsu 37247B Vector Network Analyzer, you get an auto-reversing S-parameter test set, a tuned receiver, and a synthesized source, all combined into a single package.

The Anritsu 37247B is perfect for bench-top testing because of its small size. But, despite its size, the Anritsu 37247B Vector Network Analyzer provides high throughput measurements. It uses dual GPIB ports that allow hi-speed data transfers. Alternatively, you can connect other devices such as a plotter, frequency synthesizer, power meter, or printer to the second GPIB port. The device is compatible with HP DeskJet, HP QuietJet, or HP LaserJet series of printers and Epson compatible printers with a parallel (Centronics) interface. It is also compatible with HP plotters such as the HP 7440A, HP 7470A, HP 7475A or the HP 7550A plotter.

The Anritsu 37247B has a user-friendly interface, with a 7 ½" color LCD display that makes it easy to read the measurements. You can also connect as many as 4 external VGA monitors to the device.

The Anritsu 37247B Network Analyzer has a built-in hard disk. Thus, all measurements get saved on the device itself. This is very handy when using the device on-field. You can later transfer all the data to a PC for further processing. Thanks to the built-in hard disk, you can also save setup and calibration settings for quick recall later. This allows you to quickly set up the device when re-connecting the analyzer to a previously analyzed device.
