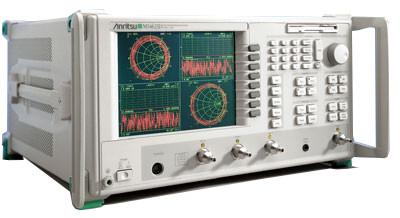

Anritsu 37277B Vector Network Analyzer

The Anritsu 37277B is a portable, microprocessor-controlled Microwave Vector Network Analyzer. The Anritsu 37277B can test passive devices in the 0.04 GHz to 50 GHz range. The Anritsu 37277B Vector Network Analyzer is a compact, all-in-one device that comprises of a signal source, an S-parameter test set, and an analyzer sub-system. Because of its small size, you will find that the Anritsu 37277B VNA can ideally be used in bench-top testing.

The Anritsu 37277B Vector Network Analyzer has dual IEEE 488 ports (a.k.a General-Purpose Interface Bus ports). This makes it one of the fastest microwave analyzers in the industry. The Anritsu 37277B has a built-in hard disk. All measurements, test data, and settings can be stored in this hard disk. The user can also transfer data by connecting an external hard drive via the SCSI port of the analyzer. The device has a transfer rate of 62 KB/sec. The device also has an internal 3 ½" floppy drive for transfer of data.

The Anritsu 37277B has 4 measurement channels. This allows the device to provide accurate Line-Reflect-Line (LRL) and Line-Reflect-Match (LRM) error-corrections. The device has a large, 7 ½" color display screen that allows you to see data of up to 8 trace results at one time. The Anritsu 37277B Vector Network Analyzer has various types of test ports such as GPC-7, SMA, GPC-3.5, N-type and K ports, so you can connect different types of devices to the 37277B Vector Network Analyzer.
