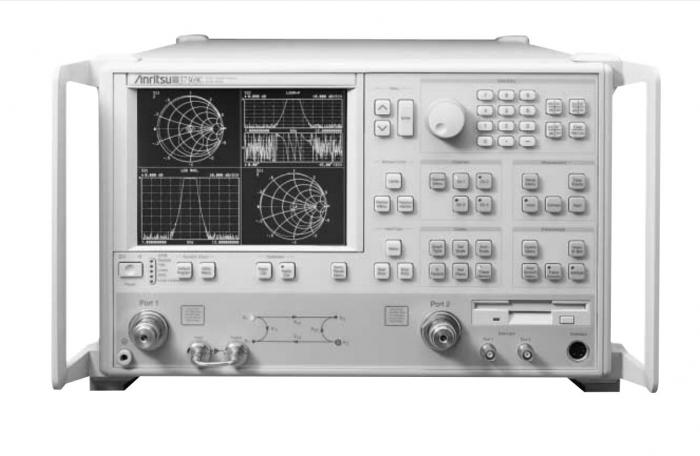

Anritsu Vector Network Analyzer 37147C

The 37147C is a high-performance Network Analyzer tool. This VNA is normally configured as direct-access receivers. This configuration of 37147C is used for various types of network antennas. The technique is also implemented for frequency conversion. It also enables users for measurement with multiple output devices. This offers ultimate flexibility to users. They can perform measurements with exceptional accuracy. The speed of their work or project turns out to be extremely fast.

The frequency range for the 37147C Vector Network Analyzer is 22.5 MHz to 20 GHz. This model comes with the capability to perform minutest measurements with accuracy. It can measure the waveform spectrum of the order of the millimeter. It also enables the user to measure all four S-parameters with ease. The VNA also incorporates a synthesized source and a tuned receiver. All these features are incorporated in a single compact package, which makes the analyzer perfect for the bench top testing environments.

The output power range for the 37147C VNA is 104 decibel. The input noise level is incredibly low. It is of the order of -122 dBm. The analyzer also offers high-speed data transfer and control capabilities. It offers the user maximum output efficiency. The analyzer also has standard dual GPIB ports. It implements IEEE 488.2 specifications for the data transfer. It transfers data at a high speed between the analyzer and helps to reduce the testing time of the whole procedure. The other GPIB port is specified for implementation of the control mechanism. These outstanding capabilities make measurements more accurate and easy for the users.
