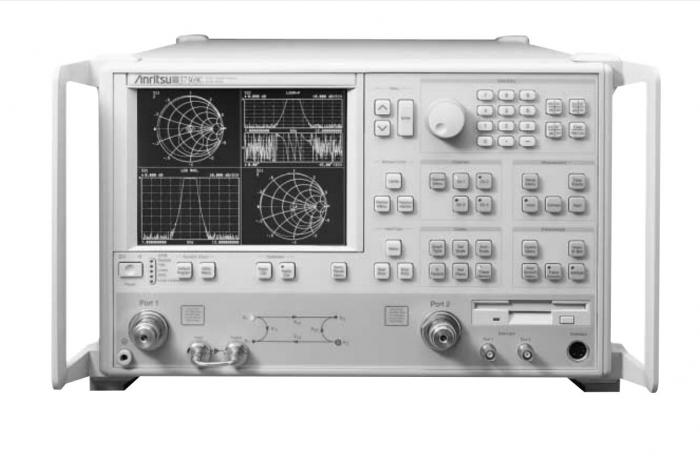

Anritsu Vector Network Analyzer 37169C

The 37169C is a Vector Network Analyzer instrument by Anritsu with outstanding performance standards, enabling users to receive accurate measurements. The 37169C has the frequency range from 22.5 MHz to 40.0 GHz. It offers various smart features to the users. The model comes with the built-in source, test set, and analyzer capabilities. The 37169C can provide 1601 data points for many measurement requirements. This VNA also enables the user to perform measurements for S-parameters; the external reflectometer is incorporated for this purpose.

The 37169C Vector Network Analyzer can work in direct access receiver mode. This mode of operation is usually referred to as DRA mode. This capability is implemented for frequency conversion and other desired requirements. The 37169C Network Analyzer performs the measurements of the order of the millimeter. The device is also incorporated with the precision component kits. It includes calibration and verification kits. It helps the user to identify inherent errors and enables the user to characterize the output as per standards. The 37169C Vector Network Analyzer also offers different options to users. The users can add the options as per their testing and design requirements. A rack mount kit is included, along with a facility for measurements in the time domain. The reference loop extension cables are also provided.

The 37169C VNA has an extremely compact design. It makes it feasible for bench-top applications. The user can measure the phase characteristics of the various networks. The 37169C Vector Network Analyzer also offers control options on the front panel. The front panel also houses the display screen. It helps the user to view the measurements in the real display. The user can get complete details about the 37169C instrument in the user manual.
