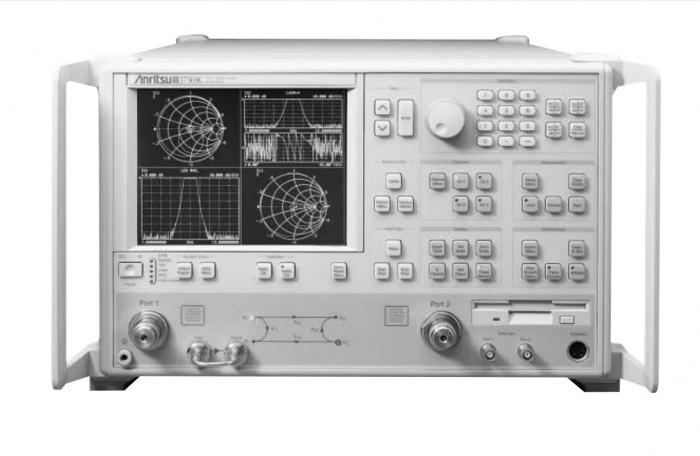

Anritsu Vector Network Analyzer 37247C

The Anritsu 37247C is a modern Network Analyzer instrument, which offers new levels of measurement and testing capabilities. The Anritsu 37247C is designed to speed up the whole testing procedure for the users. Measurement accuracy remains intact. The instrument has the frequency range between 40 MHz to 20 GHz and offers ultimate flexibility to the user for various operational requirements. The device is also compatible with different software utilities. It includes LabView instrument driver from national instruments. It helps the user to create the customized test procedures.

The Anritsu Vector Network Analyzer also incorporates the AutoCal capability. The analyzer implements the mechanism to control AutoCal internally. It helps to calibrate the measurements automatically. This, in turn, speeds up and simplify the whole calibration process. The AutoCal module is connected to the serial port of the instrument. The port is available on the rear panel of the instrument. The user can make fast, accurate and repeated measurements with the help of it. The vector analyzer also enables the user to upgrade different features with ease; the user can customize the device based on their specific needs.

The Anritsu 37247C vector network analyzer offers many smart applications to the users. The device incorporates the mixer capabilities. It includes magnitude and frequency measurements. It is done for the frequency translation devices. The model even enables for error correction during conversion loss and group delay measurements. The user can consult the detailed user guide of the 37247C product on the apexwaves.com website. It will provide detailed information about various features of the product.
