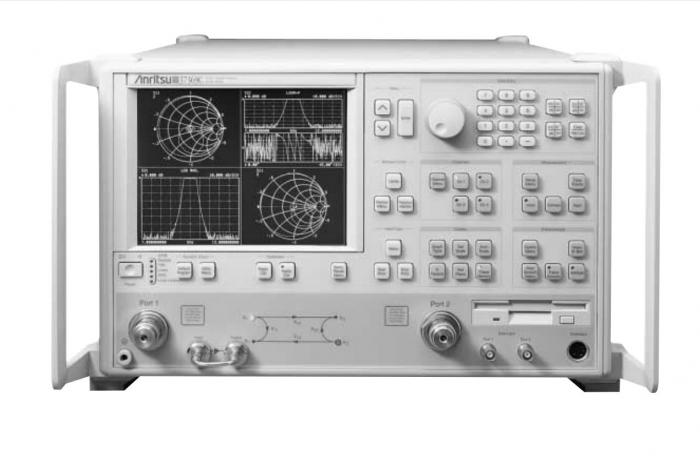

Anritsu Vector Network Analyzer 37269C

The 37269C Vector Network Analyzer offers the wide range of measurement capabilities. The frequency range for the product is between 40 MHz to 40 GHz. The VNA has a modular design and comes with many smart built-in tools. These tools enable the user to utilize various diagnostic measurements. The service tools are automated. The modular design helps to quickly find the faulty part of the instrument and enables the fast exchange of assembly level repairs. The process does not impact any other functionality of the 37269C Analyzer instrument.

The 37269C VNA comes with five internal hardware field calibration mechanism. The implemented mechanisms are automated in nature. These control power and frequency generation subsystems of the analyzer, allowing fast and consistent phase lock of the frequency at the front panel and ports. The VNA also includes a self-monitoring capability. The user is instantly notified in case of any failure. The error message is displayed on the screen on the front panel and will help ensure the proper operation of the 37269C Vector Network Analyzer. The instrument also has the capability to save service logs; can retain the service messages and data up to more than thirty pages. The user has the facility to view the service logs at any time.

The 37269C Vector Network Analyzer can also work a fast CW mode; this allows the user to do measurements in the far field environment. The data is received through GPIB interface at very high speed. The integrity of the data is ensured throughout the process. The measurements for the near-field environment are carried out through internal buffers. The 37269C VNA can store measurement data points as high as 50,000.
