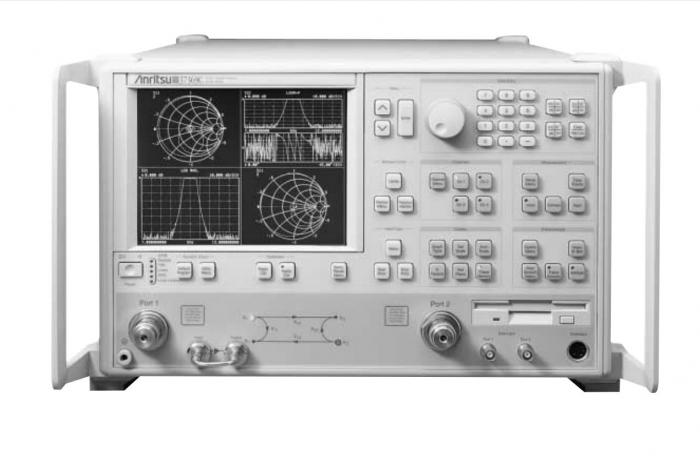

Anritsu Vector Network Analyzer 37277C

The 37277C is an accurate and enhanced performance Vector Network Analyzer designed by Anritsu. The Anritsu 37277C is designed for measurement of passive devices, has the low-frequency range of 40.0 MHz, and a high-frequency range of 50.0 GHz. It provides a lot of control options to measure the complex characteristics. The 37277C measures accurate amplitude and phase information. The model includes a built-in signal source, a test set, and an analyzer subsystem in a single package. This feature increases the reliability and is also cost-effective. It provides fast synthesized sweeps and measurement update rates of less than 2-ms per point.

Anritsu 37277C provides many applications for efficient control, such as dual GPIB ports for fast data transfer. VNA 37277C has IEEE 488.2 GPIB bus to reduce data collection times. GBIP port helps to control the peripheral devices and can be upgraded to any other model or series of the instrument family. This feature helps to accommodate higher frequency and offer more powerful measurements, while providing the time domain analysis.

Anritsu 37277C provides a lot of useful features. It has LRL Line Reflect Line and LRM Line Reflect Match calibration mode. This helps error correction and provides enhanced measurements. The 37277C also provides an Auto Cal calibrator to make fast and accurate calibrations, an LCD and VGA screen display, and a Lab view compatibility feature. The Lab view compatibility feature helps to make customized programs. It also has multiport navigator software, which provides step by step directions and simplifies the calibrations.
