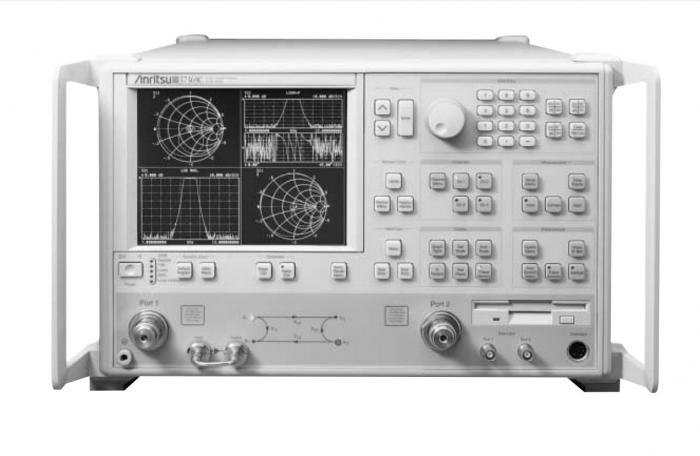

Anritsu Vector Network Analyzer 37347C

Anritsu 37347C is efficient and integrated Vector Network Analyzer, which provides the phase and scale measurement of several domains. These domains are the network, amplifiers, attenuators, and antennas. Its frequency range is from 40.0 MHz to 20.0 GHz. The input noise level is -65 dBm. This model performs absolute and accurate S-parameter measurements of frequency translation devices and offers the advanced level of measuring capabilities. The 37347C can be used for the measurement of both active and passive devices.

Anritsu 37347C offers many features for the accurate measurement of data, with measurement update rates of less than 2 ms per point. This feature provides phase lock and vector error correction for ideal accuracy. The 37347C provides a built-in storage device, with the hard disk drive, external drive on SCSI port, and internal 1.44 MB floppy drive. It also offers time domain analysis. This feature provides the impedance mismatch in the waveguide and other media.

Anritsu 37347C has several applications and benefits. It has a tune mode option for speed improvement and enhanced accuracy and a great display with color LCD and VGA display. It has four display channels. These channels display S-parameter and user-defined parameters. Each channel can display two traces at a time. The model also has a Lab view instrument driver, which aids in quickly to creating test programs. There are also independent markers to read out measurement data. These markers can find critical filter parameters. The 37347C has an internal source frequency resolution of 1 Hz, which measures data for the narrowband devices.
