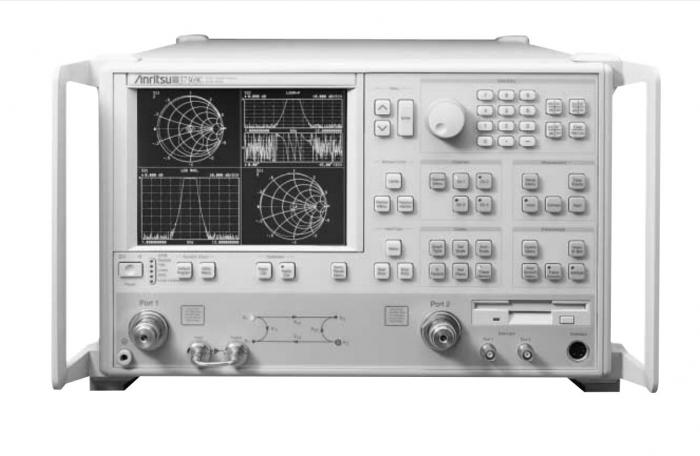

Anritsu Vector Network Analyzer 37369C

Anritsu 37369C is a very efficient Vector Network Analyzer tool, designed to make accurate measurements. The device offers enhanced capabilities to increase the throughput. It has four measurement channels for absolute and accurate S-parameters measurements. This measurement is for level and phase parameters. Its low-end frequency limit is 40.0 MHz. Its high-end frequency limit is 40.0 GHz. It provides six independent markers for measurement data. These markers can find critical filter parameters.

Anritsu 37369C has control options for enhanced performance. It has input noise level of -65 dBm. It has four channel design. It provides LRL Line Reflect Line and LRM Line Reflect Match calibration capability. This feature provides error correction and a high-performance measurement capability. It can upgrade to any other model and series in the instrument family. This feature helps to accommodate more powerful features. It has GPIB setup as well to enhance the efficiency and provide control and high-speed data transfer.

Anritsu 37369C provides many applications and benefits, such as the internal controlled AutoCal automatic calibrator. The model has built-in software that helps to make fast, accurate, and repeatable calibration. The 37369C has a built-in hard disk storage and external SCSI interface. It also incorporates internal 1.44 MB floppy drive.  This application is helpful to store traces and measurement data. It has multiport navigator software. This software provides full directions, simplifying calibrations, and measurements.

The 37369C has a rated power of -7 dBm and its least power is -97 dBm. It provides auto scale application. It is helpful to set the resolution and offset to display measurement data. It also provides fast synthesized sweeps and time domain analysis. These features help to analyze impedance discontinuities and real-time updates.
