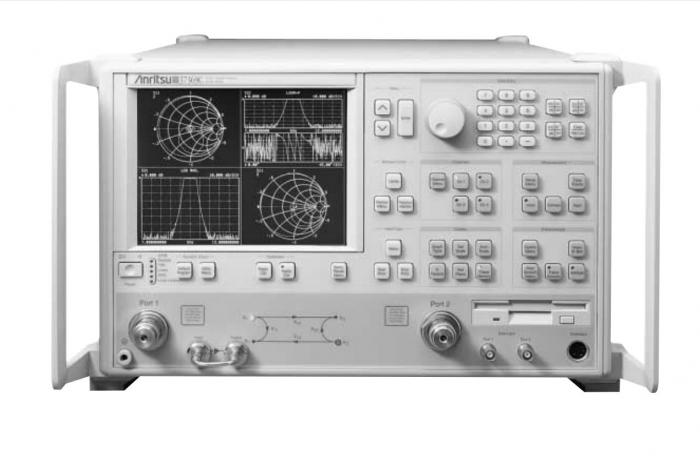

Anritsu Vector Network Analyzer 37397C

The 37397C is a high-performance Vector Network Analyzer from Anritsu used to make fast and accurate S-parameter measurements for both active and passive devices. The model has a 40.0 MHz to 65.0 GHz frequency range.

Anritsu 37397C provides high speed data transfer and control. This feature is available through dual GBIP ports. GPIB bus reduces the data collection time. It provides high speed transfers across the analyzer. The second GPIB port is use to control peripheral devices. These devices include printers, plotters, power meters, and frequency synthesizers. The 37397C also provides a time domain analysis feature used for analyzing impedance discontinuities as a function of time or distance. The software provides four windowing functions for optimization of dynamic range and resolution.

Anritsu 37397C provides many applications and control options. There is a built in high storage hard disk drive, which can be used to store test setup, data traces, limit lines and frequency markers. It has 1.44 MB internal floppy drive and external SCSI drive interface. It provides fast synthesized sweeps as well. This feature can measure update rates of less than 2ms per point. It also provides the feature to measure amplifier gain compression. The rated power is -7 dBm and least power is – 79 dBm. The 37397C has a color LCD and VGA display. It provides vector error correction as well. It also provides markers feature. to read out measurement data clearly and accurately. The model also has four measurement channels. These channels can display any S parameter or user defined parameter.
