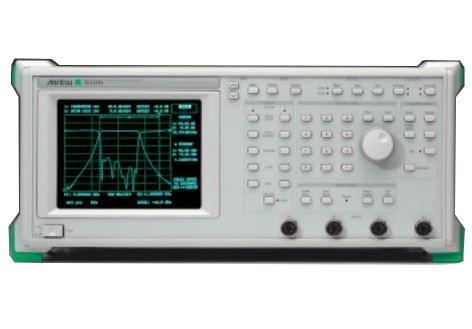

Anritsu 54119A Scalar Network Analyzer

Anritsu developed the 54119A Scalar Network Analyzer with an EOI line utilized to show the last byte of a multibyte information exchange. The speaker sets the EOI TRUE line amid the last byte of information. The dynamic controller additionally utilizes the EOI line together with the ATN line to start a parallel testing grouping. This model offers a clear interface where just the framework driver utilizes this line. At the point when IFC is TRUE, all gadgets on the transport are put in a known state, quiet (no deliver to talk, no response to tune in to and sit). At the point when REN is set to TRUE, the transport is in remote mode and the gadgets are coordinated to tune in or talk. At the point when the transport is on remote control and a gadget is tended to, it gets directions from the GPIB rather than from its front board. At the point when REN is set to FALSE (high), the transport and all gadgets come back to neighborhood operation.

The 54119A is capable of offering an IEEE Interface Function Messages; these messages are sent through the information lines and in the interface administration lines to control the whole status of the interface and the way it reacts to the changes. These messages are utilized to control the interface. The client more often than not has control over these signs; be that as it may, the extent of client control relies upon the usage and fluctuates with the particular equipment and programming utilized with the outside controller.

This model includes a user’s manual that is also available on the ApexWaves.com website.
