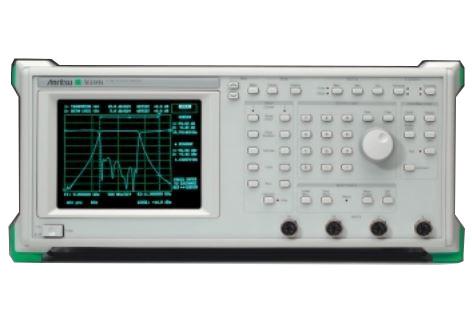

Anritsu 54128A Scalar Network Analyzer

Anritsu developed the 54128A Scalar Network Analyzer; this model includes a lot of important commands, these summons are memory aide codes sent by the outer PC to the 54128A to control the arrangement and estimation operations of the 54128A. The capacity and substance of these charges are not indicated by the IEEE-488 standard. They are one of a kind and particular to the ANRITSU 54128A. These orders (GPIB 54128A charges) are transmitted by means of the GPIB interface information transport to 54128A as ASCII strings containing at least one code. They are decoded by the inner controller 54128A and cause the different estimation elements of the framework to be performed. (The GPIB 54128A interface does not interpret these orders, but rather just goes about as a transmission channel to the inside controller).

54128A can also show information status and instrument messages, these messages are sent by the 54128A to the outer PC through the GPIB. They contain estimation information, setup data or framework status data that the 54128A transmits by means of the information transport in light of particular charges from the outer PC asking for the information. The substance of these messages is particular to the 54128A. They can be as ASCII strings, or double information. Sometimes, information messages will be transmitted from the outside PC to the 54128A. The instrument also includes a SRQ (Service Request) is an interface work message sent from the 54128A to the outer PC to ask for the administration from the PC, for the most part because of some condition or default framework blunder. To send this message, the 54128A designs the SRQ.

You can find more commands and functions by reading the manual available on the ApexWaves.com website.
