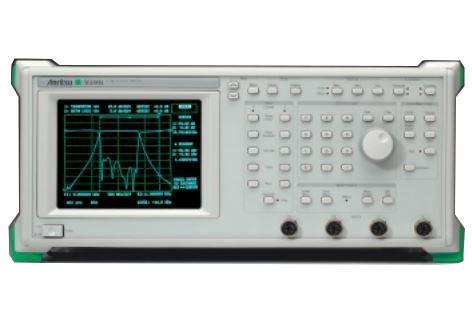

Anritsu 54161A Scalar Network Analyzer

The Anritsu 54161A Scalar Network Analyzer (2 GHZ to 40 GHz), utilizes a low consonant source and elite against associating programming to keep the show of false or "ghost" transmission line deficiencies. This is a typical issue when the end of the DUT is unterminated or harmed. Anritsu's accuracy parts and low consonant sources avert "apparition" flaws, guaranteeing precise, repeatable outcomes.

The Anritsu 54161A Distance-to-Fault programming upgrades affectability and precision. For instance, an exactness end is utilized amid alignment to accomplish industry driving dynamic range. On the off chance that the end is not ideal, it will mirror a portion of the source vitality rather than retain it – causing mistakes in the estimation procedure. The utilization of a discrete Fourier change, as opposed to a more typical quick Fourier change likewise enhances low level affectability. Low source music additionally guarantee that blame signs are real transmission line, not re-impressions of source symphonious vitality.

To perform the 54161A calibration, the user should start the provoked alignment arrangement for the 54161A. At the point when a stage has been finished, the instrument will show a message inciting the client to set up the gear prepared for the following adjustment step. It will likewise issue a SRQ (if SRQ is empowered and bit 2 is unmasked, i.e., 'SQ 1, PM 4'). Likewise, bit 2 in the Primary Status Byte will be set, demonstrating to the controller that the instrument is prepared for a "proceed with" guideline (CTN or CON).
