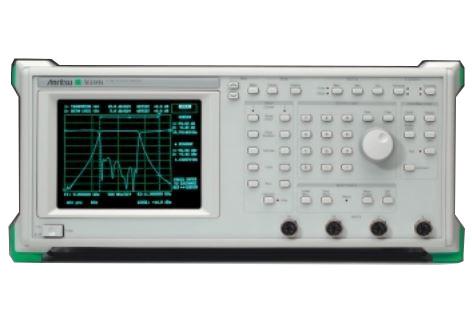

Anritsu 54169A Scalar Network Analyzer

The Anritsu 54169A Scalar Network Analyzer is capable of learning ASCII Trace Data; the instrument gets ASCII estimation follow information string sent from the controller for channel (N). 'Information String' design is the same with respect to order OAT. The quantity of information focuses sent (101, 201, 401) and estimation sort (T, P, R, S) should compare to the present instrument setting; generally, the information will be unusable. The instrument ought to be set in HOLD (memory aide HON) before this summon is utilized; generally, the reestablished information will be quickly overwritten with new information.

This model also incorporates a Question Marker Reading, which returns the scalar estimation of Channel N at the present position of the predetermined marker M. Reaction information extends ±99.99 dB. Information organized is with respect to charge OCR. Exemption: Returns "mistake" if N is invalid or missing, or if marker M isn't on screen, or if number indicated for M is invalid or is missing. But that’s not all, 54169A has a Question Cursor Frequency, which returns the recurrence at the present cursor position for show channel (N). The yield design is "12.3456 GHz" Leading zeroes are supplanted with spaces, illustration: " 0.1234 GHz". Models 54107, 54109, a d 54111 restore all recurrence data in MHz; all others restore all recurrence data in GHz. Reaction information runs in the vicinity of 0.
