Anritsu MP1026A Handheld Bit Master Eye Pattern Analyzer

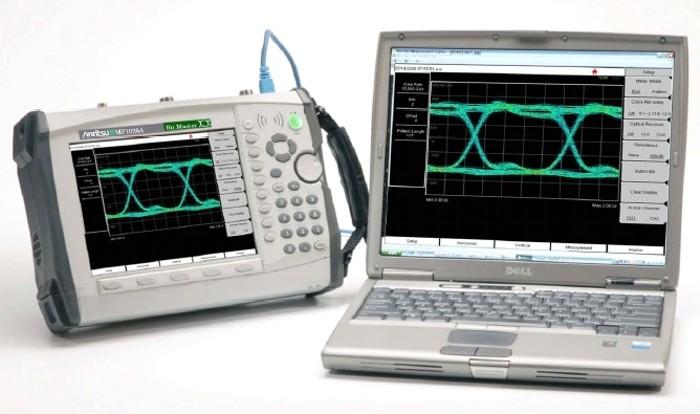

The MP1026A is a reliable handheld bit master eye pattern analyzer from Anritsu. This model comes with two electrical input channels for measurements. It offers the frequency bandwidth of 20 GHz. The instrument is capable of sampling and displaying eye or pulse patterns for high-speed signals, such as OC192, 10 Gbps Ethernet, and fiber channels. The Anritsu MP1026A handheld bit master eye pattern analyzer is an amazing diagnostic tool. The user can quickly recognize the source of jitter and noise and improve the quality of the signal.

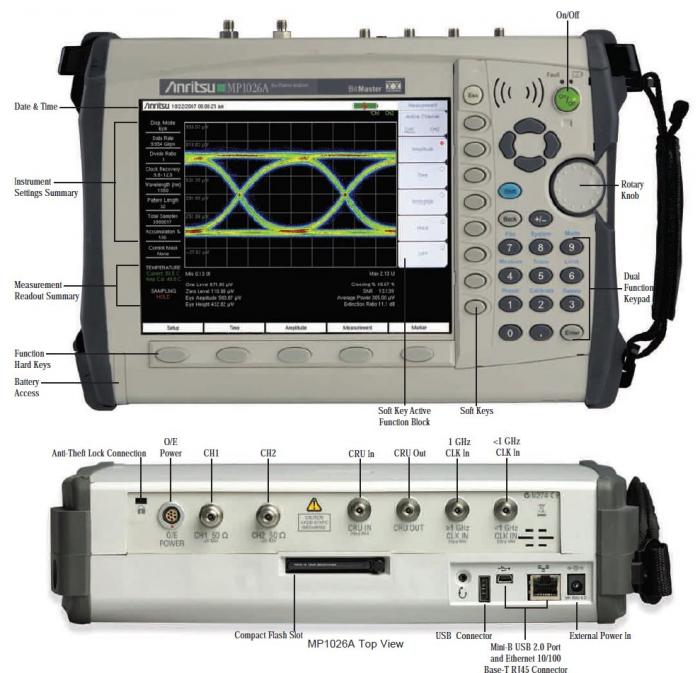

The Anritsu MP1026A bit master eye pattern analyzer has both USB and LAN interfaces. The Anritsu MP1026A also has an optional optical interface, which makes use of an external O/E module. It helps transform the electrical channel to an optical input channel. The instrument can perform time, amplitude, and histogram measurements. The user can carry out these measurements on any of the channels. It offers the capability to automatically time and date stamp the measurement data. The Anritsu MP1026A handheld bit master eye pattern analyzer has built-in memory, which permits the user to store and recall measurement setups and data. The user can save as many as 1000 measurement setups.

The Anritsu MP1026A handheld bit master eye pattern analyzer also has an LCD display with a high resolution. The instrument can operate on 12 VDC source, which makes it suitable for field applications. The device also offers various optional capabilities and accessories, such as a clock recovery unit and an optical interface option.
