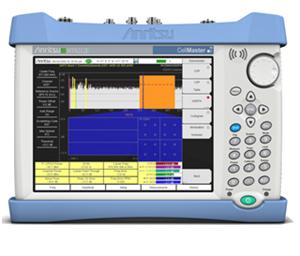

Cell Master MT8213E

Compact, handheld base station analyzer with massive power from Anritsu`s new generation portable analyzer`s family!

     Standard Configuration

·        2 MHz    -    6 GHz Cable & Antenna Analyzer

·        9 kHz     -    6 GHz Spectrum Analyzer

·        10 MHz  -    6 GHz Power Meter

Cell Master MT8213E is an economical and the smallest solution available for 2G, 3G, 4G, and WiMAX base station transmitter testing. Ideal for activities from installation to commissioning and for troubleshooting and maintenance of wireless stations.

MT8213E – Sleek Instrument with Great Extendibility

Cell Master MT8213E can be coupled with more than 30 options; thus this one tool can be used for a broad range of measurements. Following are a few examples of options available and compatible with MT8213E;

·        Option 0031    -    GPS Receiver

·        Option 0010    -    Bias-Tee

·        Option 0025     -    Interference Analyzer

·        Option 0431    -    Coverage Mapping

·        Option 0027    -    Channel Scanner

Made for on field RF Technicians

Anritsu has designed Cell Master MT8213E, especially for field engineers and technicians. Its sheer measuring power comes encapsulated in a military grade rugged body. Several other design related characteristics are there to make it an ideal device for outdoor testing including but not limited to;

•          8.4” Sunlight friendly Color resistive touchscreen (800 x 600)

•          Lithium-Ion battery with around 3 hours backup time

•          Weighs around 3.7 kg (standard configuration)

•          Operating temperature range -10 ºC to 55 ºC

•          Analyzer`s dimension are 273 x 199 x 91 mm

Highlights: Standard Configuration

•          1 ms/data point Sweep Speed (Typical)

•          Hi/Lo Power measurement for 2-port transmission

•          32 V internal Bias Tee

•          Dynamic Range / DANL     > 102 dB / –162 dBm (in 1 Hz RBW)

•          Frequency Accuracy (with GPS on) ± 50 ppb

The Cell Master MT8213E is an optimal combination of test capabilities in one light weight handheld device which can;

•          Eliminate the need for several test instruments

•          Reduce the number of tools a technician must carry & learn to operate

•          Enable users to create automated testing schedules
