Anritsu MS2717A Economy Spectrum Analyzer

The Anritsu's MS2717A is the new Economy Spectrum Analyzer with prevalent execution and propelled abilities. The Anritsu MS2717A conveys reasonable range examination with unrivaled execution, propelled capacities, and current WCDMA signal investigation. With a Frequency Range between 100 kHz to 7.1 GHz the MS2717A effortlessly handles most remote frequencies. The sign of the MS2717A is phase noise execution: run of the mill – 110 dBc/Hz SSB phase noise at 10 kHz balances up to 6 GHz, which effortlessly measures most remote nearby oscillators and synthesizers. The MS2717A is ergonomically planned so controls are anything but difficult to learn and simple to use for enhancing efficiency in assembling, R&D, and useful testing. The best part is that the predominant dynamic scope of 100 dB enables quick and exact testing of remote parts that require outstanding linearity. The wide 8 MHz catch data transfer capacity underpins discretionary WCDMA/HSDPA and WCDMA demodulator estimations for streamlining trial of Node-Transmitters.

 Among the standard estimations this model offers a Channel Power that measures the aggregate power in a predefined transmission capacity, ACPR that measures control levels in the channels instantly above and beneath the inside channel, C/I that measures transporter to impedance proportion and an Occupied Bandwidth that measures 99% to 1% control channel of a range.

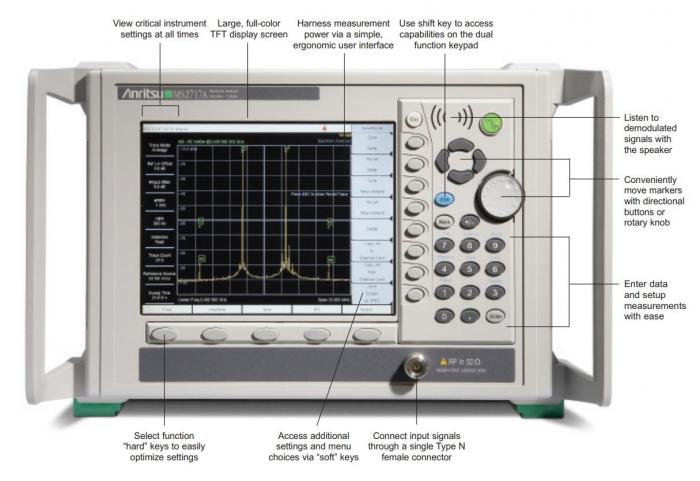

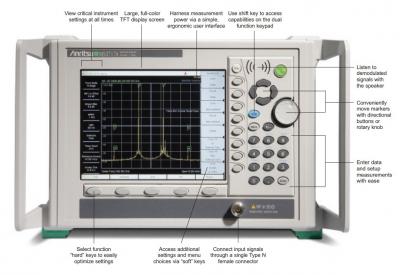

This simple to learn operation gadget has a 8.4 inch Color TFT Display (SVG), 64 MB Storage for 1,000 Traces, 1,000 Setups and 1 Year of Standard Warranty.

On the off chance that you are intrigued to learn more about this model capacity you can check its manual on the ApexWaves.com site.
