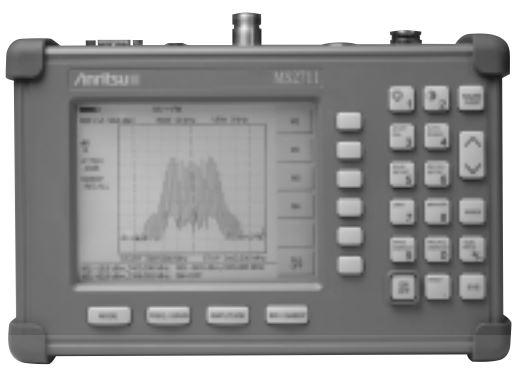

Anritsu Handheld Spectrum Analyzer MS2711A

The Anritsu MS2711A is a portable, hand-held spectrum analyzer created especially for applications like measuring, monitoring, and analysis of signal environments.  A complete range of marker capabilities including peak, center, and delta functions are provided for comprehensive and faster measurement of the displayed signals. With a frequency range of 100 kHz to 3000 MHz, the Anritsu MS2711A is an ideal instrument for typical measurements including (but not limited to): in-band interference, transmitting spectrum analysis, cell area interface, and antenna isolation.

This model MS2711A comes with an internal memory to facilitate the storage of up to 200 traces and 10 setups. For additional analysis, hard copies of the traces can also be obtained simply as this instrument has an RS232 DB9 interface useable to attach a printer. Some of the notable features of the MS2711A include: as long as 2.5 hours of battery backup, it limits lines for simple pass/fail measurements quickly, can be operated from a 12.5V DC source, built-in energy conservation features, high-resolution liquid crystal display, and a calculator like keypad.

The MS2711A comes equipped with an internal memory to store a maximum of 200 traces and 10 setups. For further analysis, hard copies of the traces can also be retrieved simply because this instrument has an RS232 DB9 interface useable to attach to a printer.

The MS2711A Spectrum Analyzer comes with dedicated keys for a quick actuation and toggling between different functions and operating modes. Measurements stored in MS2711A’s internal memory can easily be downloaded to a PC with the help of a null-modem serial cable (supplied by vendor).
