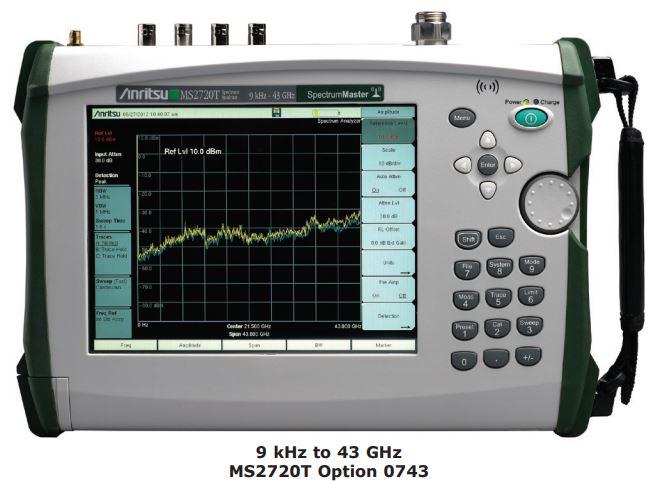

Anritsu Handheld Spectrum Master MS2720T

Here comes the world's first handheld analyzer with 32 GHz and 43 GHz frequency coverage - the mighty MS2720T. This model is designed to cover vast frequency ranges which are; 9 KHz to 9, 13, 20, 32, or 43 GHz. It is the only instrument in its class with an integrated atomic clock.

The internal atomic clock is there to ensure that you are testing with ultimate frequency accuracy. It is something you will not find in competing ranges of the spectrum analyzers. In the MS2720T, broadband preamplifiers are employed to achieve an increased sensitivity of 14 dB. This model comes with several value-added features to provide the operators with a rich testing experience. One such feature is the following four sweep modes this instrument offers: Burst Detect, no FFT, Fast, and Performance.

The MS2720T comes equipped with a smart touchscreen user interface. This instrument empowers the user to a greater extent. Now the user can add their own shortcut buttons to actuate any function or Menu button and also recall any defined and stored testing profile.

As far as the storage abilities of this instrument are concerned, it offers an unlimited storage. The user can store thousands of spectrum traces and hundreds of setups without investing in a dedicated memory module. Some of the highlights of the MS2720T include: Burst Detect with an ability to capture 200 μs bursts, a field swappable battery, Signal Strength Mapping capabilities, identification of out of band spectral marks/spurious signals, in band interference identification, 2-Port measurements of cables, filters and amplifiers by means of a tracking generator up to 20 GHz, and AM / FM analog measurements for proofing.
