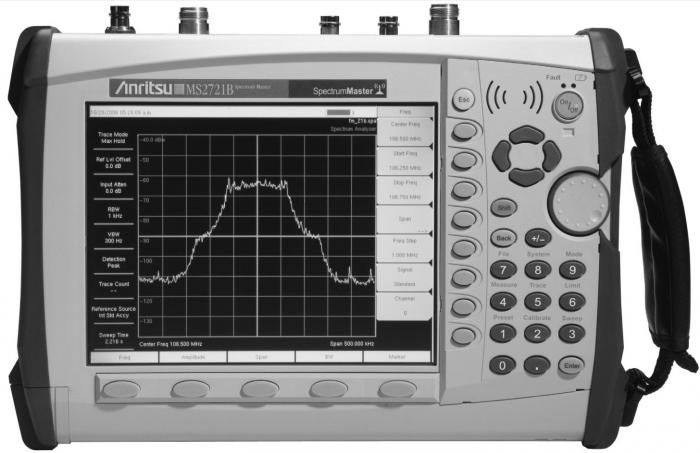

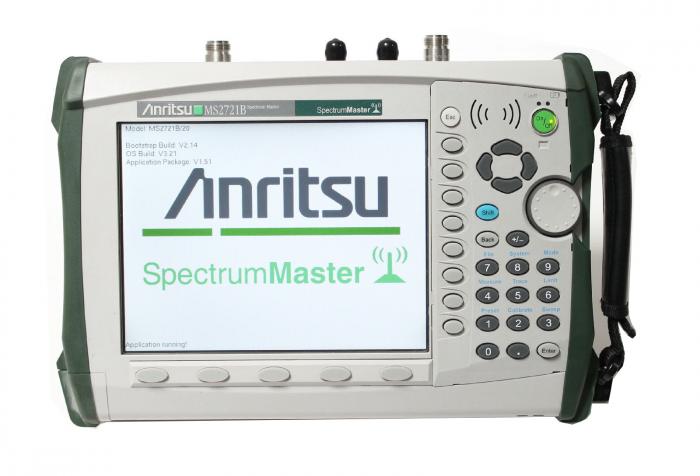

Anritsu Handheld Spectrum Analyzer MS2721B

The Anritsu MS2721B Handheld Spectrum Analyzer was engineered to handle analysis and testing on the new wave of cellular signals and wireless LAN with exceptional precision scores. It is the model designed to deal with ultra-wideband, WiMAX, 802.11a, 3G, etc. This instrument is perfect for broadcast proofing of AM and FM because its low phase noise and wide dynamic range make NRSC measurements on IBOC & analog signals hassle free without any need for an external filter or additional hardware resources.

The MS2721B is a compact, simple to use and easy to transport, multifunctional spectrum analyzer with straightforward controls and exceptional measurement/analytical capabilities. This model is an excellent multipurpose instrument for applications and testing purposes with a frequency range up to 7.1 GHz, and equally productive in the field and on the engineering bench. A few of the notable features of the MS2721B Spectrum Analyzer are the -100 dBc/Hz Extremely low phase noise (@ 10 kHz offsets), -163 dBm Typical DANL, 1 Hz to 3 MHz Resolution bandwidth range, and1 Hz to 3 MHz Video bandwidth (VBW) range.

The MS2721B has a huge storage facility, allowing the user to store over 1000 set-ups and measurements on its internal memory. The use of an additional memory module by Anritsu or USB Flash Drives lets you save a boundless number of setups and traces for later use. A standard Ethernet port is also available on this instrument for its remote controlling – another great feature which makes this Spectrum Analyzer one of the most flexible products of its kind available on the market.
