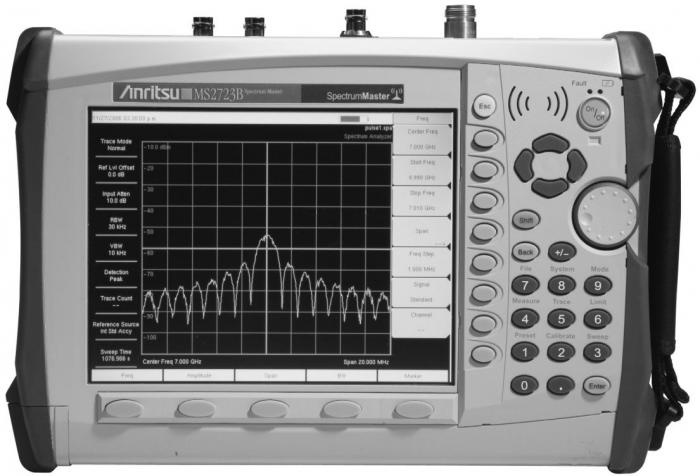

Anritsu Handheld Spectrum Master MS2723B

The MS2723B is created to conduct testing and assessment with accuracy on the new wave of Cellular Signals, Wireless LAN. It is a small, compact, and easy to use a portable instrument with broad measurement capabilities and for applications up to 13 GHz. In this model with CISPR resolution bandwidths, quasi-peak detections are included. Several smart measures include: Carrier to Interference Ratio, Field Strength, Channel Power and Adjacent Channel Power are built into the MS2723B. A demodulator for AM/FM & SSB is also included. Signals once demodulated can be analyzed and monitored with the help of the integral speaker or by using a 2.5 mm universal 3-wire headset, the same as used with several cellphones.

This model has -104 dBc/Hz low phase noise typical at 1 GHz and @ 10 kHz offset. The sweep speed of the MS2723B Spectrum Master is faster than any other transportable spectrum analyzer; it can be set from 10 microseconds to as many as 600 seconds. The model can store 1000 traces in its internal memory, but more storage can be added with a USB flash drive.

The MS2723B is fully capable with the Master Software Tool, and thus a connection between your instrument and PC can be established using USB, Ethernet LAN or Direct Ethernet. With propriety software tools you will be able to: store unlimited data to a PC easing the task of monitoring and analyzing historical performance, view several measurements and traces on the same screen by using trace overlay function, and capture live traces directly from the instrument to view them on your computer`s display device.
