MP2100A Technical Specifications:
| Manufacturer | Anritsu Corporation (Anritsu Kabushiki-gaisha) |
|---|---|
| Model | MP2100A |
| Type | BERTWave |

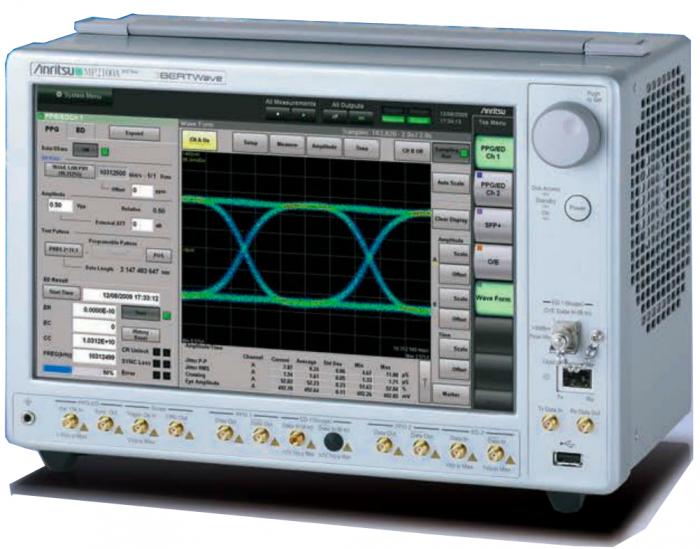

MP2100A
Home MP2100A
| Part Number | MP2100A |
| Manufacturer/Brand | Anritsu |
| Description | BERTWave & Eye Pattern Analysis |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Options
| MP2100A BERTWave Options List |
|---|
| MP2100A BERTWave BERT + Eye/Pulse Scope |
| MP2100A -001 Dual Electrical Receiver |
| MP2100A -003 Optical/Single-ended Electrical Receiver Must select one of those |
| MP2100A -007 1ch Electrical BERT and Optical/Single-ended Electrical Scope |
| MP2100A -005 Extended PPG/ED Channel |
| MP2100A -030 GPIB |
| MP2100A -037 FC Connector Either Option-003 or 007 is required. |
| MP2100A -040 SC Connector Must select one of those |
| MP2100A -050 XFP Slot Select no option or one of these MP2100A -051 SFP+ Slot |
| MP2100A -052 Full Rate Clock Output |
| MP2100A -055 Clock Recovery for Eye/Pulse Scope |
| MP2100A -061 1 High Bit Rate Filter |
| Either Option-003 or 007 is required. |
| About of Filter Bank and Filter, refer to “Filter Bank |
| Configuration” |
| MP2100A -062 2 High Bit Rate Filter Bank |
| MP2100A -063 3 to 4 High Bit Rate Filter Bank |
| MP2100A -064 1 to 2 Low Bit Rate Filter Bank |
| MP2100A -065 3 to 4 Low Bit Rate Filter Bank |
| MP2100A -066 1 High Bit Rate/1 to 2 Low Bit Rate Filter Bank |
| MP2100A -067 1 to 2 High Bit Rate/3 to 4 Low Bit Rate Filter Bank |
| MP2100A -068 2 to 3 High Bit Rate/1 to 2 Low Bit Rate Filter Bank |
| MP2100A -069 3 High Bit Rate/3 Low Bit Rate Filter Bank |
| MP2100A -070 LPF for 156M (L) |
| MP2100A -071 LPF for 622M (L) |
| MP2100A -072 LPF for 1.0G (L) |
| MP2100A -073 LPF for 1.2G (L) |
| MP2100A -076 LPF for 2.1G (H) |
| MP2100A -077 LPF for 2.5G (H) |
| MP2100A -078 LPF for 2.6G (H) |
| MP2100A -079 LPF for 3.1G (H) |
| MP2100A -080 LPF for 4.2G (H) |
| MP2100A -081 LPF for 5.0G (H) |
| MP2100A -082 LPF for 6.2G (H) |
| MP2100A -084 LPF for 9.9G to 10.3G (H) |
| MP2100A -085 LPF for 10.5G to 11.3G (H) Option-084 and 086 support to 8GFC measurement |
| MP2100A -086 LPF for Multi 10G (H) |
| MP2100A -090 Bit rate Extension for PPG/ED |
| MP2100A -091 ED High Sensitivity |
| MP2100A -130 GPIB Retrofit |
| MP2100A -152 Full Rate Clock Output Retrofit |
MP2100A
Main Image
Secondary Image
BERTWave & Eye Pattern Analysis
Call
Call now for best pricing
919 809 5227
919 809 5227
Rate the MP2100A
Rated 0/5 based on 0 ratings.
Rated 0/5 based on 0 ratings.
- MP2100A Technical Specifications
| Manufacturer: | Anritsu Corporation (Anritsu Kabushiki-gaisha) |
|---|---|
| Model: | MP2100A |
| Type: | BERTWave |
