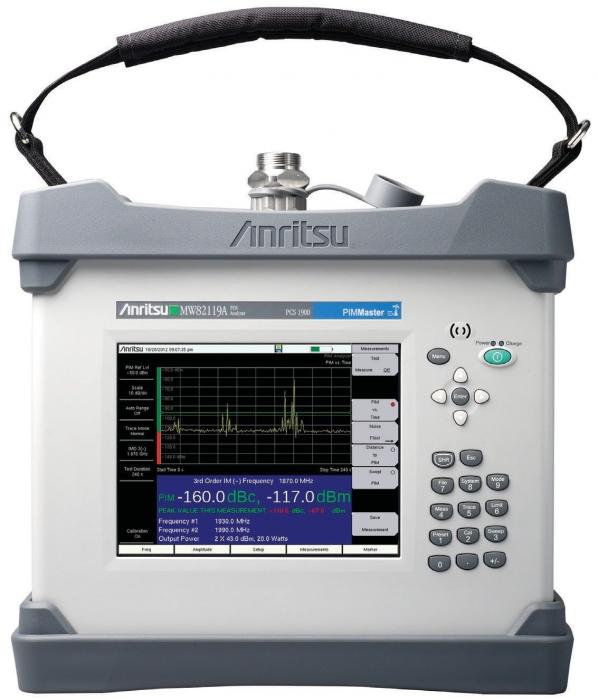

Anritsu MW82119B PIM Master

The Anritsu MW82119B PIM Master can be operated through remote control with WiFi to suppport a variety of testing situations. Line of site distances have been achieved, allowing an individual on the ground to control the test supplies at the same time an individual at the top of the mast makes associations. For PIM tests, this capacity is also functional for roof testing, permitting one man to control the test remotely and at the same time, following the cable run and performing dynamic PIM tests.

The Anritsu MW82119B incorporates a large, outdoor-viewable display and an intuitive client interface that is enhanced for field operation. The MW82119B's rugged design and improved portability empowers both PIM and Line Sweep testing at the top-of-the-tower, aiding operators with completing maximize RF execution from their LTE Remote Radio Head (RRH) installations. The MW82119B PIM Master is a specialized test instrument capable of measuring framework linearity and recognizing issue areas both inside the cable framework and beyond the radio wire.

The MW82119B PIM Master includes 2nd order intermodulation products (Option 902), –125 dBm typical od Residual PIM, Test Power between 20 dBm to 46 dBm, >3 hour run time battery, 8.4 in (213 mm) daylight viewable Display, MIL-STD-810G drop test rated, stainless steel lifting rings, IP54 rated for dust and water spray, and a padded soft case for extra protection

If you are interested in this instrument, and you want to learn more about its specifications and features, you can check its manual on the ApexWaves.com website.
