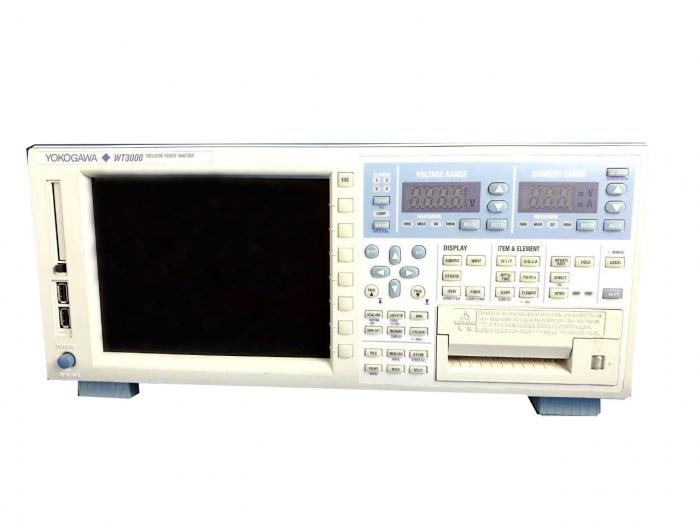

Yokogawa WT3000 Power Analyzer

The Yokogawa WT3000 is a Precision Power Analyzer featured with a broad range of measurement functions, such as rms Voltage, Power, Phase Difference, Average Current, etc. This model can contain up to four input elements and can be used for the measurement of different variables simultaneously. In addition to its 15 predefined measurement functions, the Yokogawa WT3000 can also be programmed for 20 user-defined functions. Featured with a large, 8.4-inch Color LCD, the WT3000 offers a store function as well for storing data at 50 ms intervals.

On the Yokogawa WT3000 there are five wiring systems available, which includes: Single-Phase, two-wire and three-wire system, Three-phase, three-wire system, three-phase four wire system, and three voltage-three current system. This model can be operated with either fixed range or auto range for measurements. With the auto range selected, the measurement range switches automatically concerning the amplitude of the input signal. This model features a comprehensive range of computation functions as well. The user can create different equations with the help of a supported measurement function system and operators. This device supports 11 operators, including but not limited to, the SQR (square), LOG (algorithm), EXP (exponent), NEG (negation), etc.

The Yokogawa WT3000 is a perfect measurement solution for applications, such as engineering, motor drives, lighting systems, UPS systems, transformer testing, product efficiency testing, aircraft power systems, and various others. It offers a 0.02% superior basic power accuracy. This model comes with a powerful range of onboard interfaces, including: Ethernet, RS-232, USB, and GP-IB.
