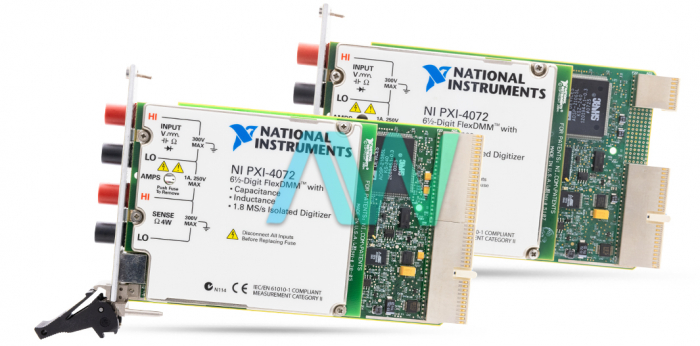

National Instruments PXI-4072 PXI Digital Multimeter

The National Instruments PXI-4072 (Part Number: 778270-01) FlexDMM gives the user the usefulness of three normal instruments in a solitary slot 3U PXI module: a 6½-digit multimeter, an LCR meter, and disengaged digitizer which has a maximum sample rate of 1.8 MS per second. The NI PXI-4072 FlexDMM brings computerized multimeters closer to providing universal estimation ability by offering the user the 20 most basic ATE estimations, including voltage, current, capacitance, inductance, temperature, and resistance. By coordinating these estimations into one PXI module, the user can diminish test framework size and cost, increment throughput, and abbreviate test development time. This model can likewise be utilized with PXI switches to frame a multichannel information obtaining framework.

These National Instruments PC-based advanced multimeters and LCR meters are upgraded for computerized test. Accessible on buses from USB to PXI, these DMMs consolidate offer more than 150 NI switch topology alternatives to make high-channel-count test frameworks. The device has a DC voltage range of -300 V to 300 V; and a DC current range of -1 A to 1 A. It is equipped with a 6.5 digit resolution. The PXI-4072 has a DC range/function change of 100/s, and an AC range/function change of 10/s. Additionally, the device has an operating ambient temperature range of 0 °C to 55 °C.

The device operates on the NI-DMM driver software. National Instruments NI PXI-4072 FlexDMM and LCR Meter drivers are minor programs that empower the Digital Multimeter to communicate with the working framework software. Keeping the NI PXI-4072 FlexDMM and LCR Meter software updated prevents crashes and amplifies equipment and framework execution. Utilizing obsolete or degenerate National Instruments PXI-4072 FlexDMM and LCR Meter drivers can cause framework blunders, crashes, and make your PC or equipment fail. Besides, introducing the wrong National Instruments drivers can aggravate these issues even more. Also, your computer should have one of the following configurations: a PCI slot, a x1, x4, x8, x16 PCI Express slot, a USB 2.0 or 1.1 slot, a PXI, PXI/CompactPCI, or PXI/SCXI combination chassis, chassis documentation, and a controller. Additional specifications for the PXI-4072 can be found in the user manuals and datasheets under the "Manuals & PDFs" tab.

PXI-4072 Maintenance Status has been announced by National Instruments, but the multimeter will still be available for purchase and repairs by Apex Waves.
