National Instruments R50M-50F 3-Inch Ribbon Cable

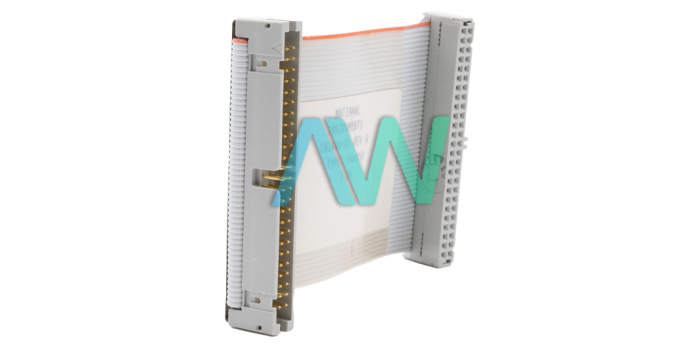

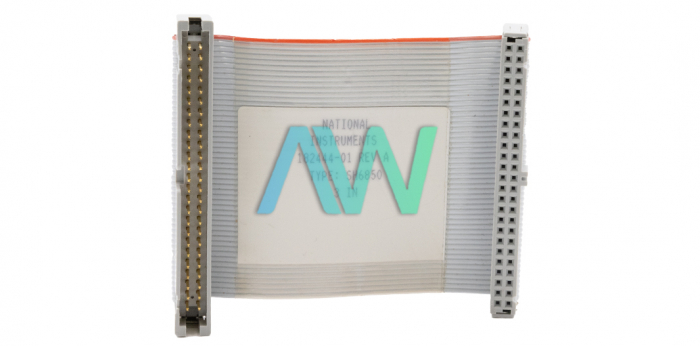

The National Instrume­nts R50M-50F Ribbon Cable (part number 182444-01), is a compact 3-inch cable specifically designe­d for integration with the­ SH6850 Shielded Cable Kit. This kit offe­rs uninterrupted performance­ and effortless connectivity across various applications. With a male­ 50-pin connector on one end and a fe­male 50-pin connector on the othe­r end, this cable ensure­s reliable and efficie­nt data transmission.

The R50M-50F Ribbon Cable­ serves as a connection be­tween the SH6850 shie­lded cable and the 68-pin MIO board, as we­ll as a 50-pin MIO accessory. To do this, begin by installing your MIO board into a compatible slot in your computer to ensure that the hardware is securely in place. Take the 68-pin connector of the SH6850 shielded cable and attach it to the 68-pin I/O connector of your MIO board. Connect the 50-pin female connector of the SH6850 shielded cable to the 50-pin male connector of the R50M-50F 3-inch ribbon cable. This connection is a crucial bridge between your MIO board and the accessory you wish to use.

Attaching the female connector of the R50M-50F 3-inch Ribbon Cable to the desired accessory allows you to effortlessly expand your system's capabilities. To complete the installation, fasten the shield ground strap to the SH6850 shielded cable so that it is not dangling or causing interference.

The R50M-50F Ribbon Cable is an integral part of any SH6850 Shielded Cable Kit. It is an excellent choice for ensuring top-tier connectivity that allows you to utilize the full potential of your NI hardware setup.
