National Instruments SCB-19 AUX I/O Connector Block

Featured with noise rejecting capabilities, the NI SCB-19 (Part Number: 156053A-01) is an AUX I/O Connector Block from National Instruments. This Shielded I/O Block is suitable to be used with a broad range of National Instruments digitizers, oscilloscopes, waveform generators, etc. However, the NI SCB-19 can only be used with devices with 19-pin auxiliary (AUX) I/O connectors.

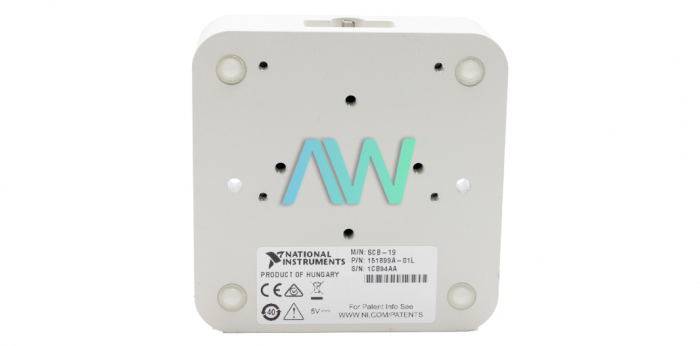

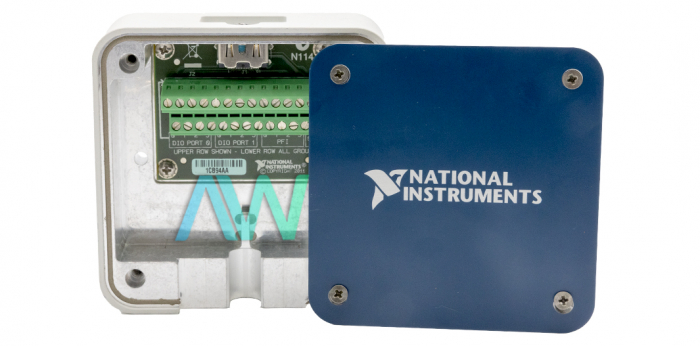

This AUX I/O Connector Block comes with 13 I/O screw terminals and 13 ground terminals soldered on a single board contained by a square-shaped enclosure that ensures maximum shielding. There are four screws provided at each corner of the enclosure’s lid. You can access the screw terminals and the board of the SCB-19 by removing these four screws. The NI SCB-19 can be mounted in on a DIN rail as well as on a wall through screws. The device-side connector provided in this shielded accessory is an H19 connector. You can use the SHH19–H19–AUX Cable to connect a compatible device with the SCB-19.
