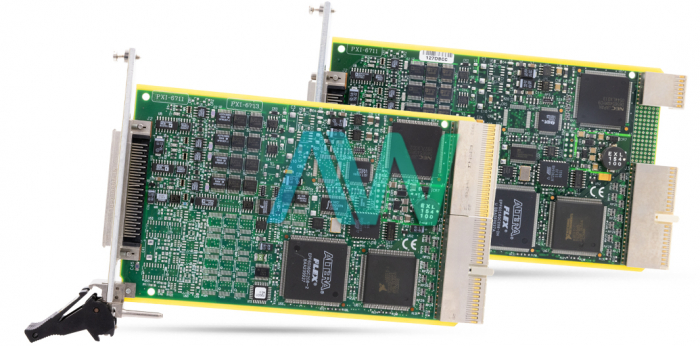

National Instruments PXI-6711 PXI Analog Output Module

The PXI-6711 (Part Number: 777794-01) can supplant a few types of instruments, including stand-alone proportional integral derivative (PID) controllers, low-speed subjective waveform generators, and capacity generators. The user can control every datum point for each channel to characterize normal waveforms, such as square, sine, or saw-tooth, and complex waveforms, including stimulus-response, power supply control, high-speed, deterministic control, and sensor/signal recreation. Also, the gadget gives eight 5 V TTL/CMOS computerized I/O lines, two 24 bit, 20 MHz counter/timers, and digital triggering and outer timing abilities.

With this module, the user can associate every D/A converter (DAC) to the inward reference of 10 V or to the outer reference signal associated with the outside reference (EXTREF) stick on the I/O connector. This signal connected to EXTREF ought to be inside ±11 V. The user can configure each channel to utilize either inside or outside reference (the default reference esteem determination is inner reference). The PXI-6711 Analog Output Module contains eight lines of advanced I/O for universal use. The user can independently configure each line for either input or output. At framework startup and reset, the computerized I/O ports are altogether high impedance.

The DAQ-STC gives an exceptionally adaptable interface to associating timing signals to different gadgets or outer hardware. The PXI-6711 module utilizes the RTSI bus to interconnect timing signals amongst gadgets, while the Programmable Function Input (PFI) sticks on the I/O connector to interface the gadget to outer hardware. These associations are intended to empower the PXI-6711 to both control and be controlled by different gadgets and circuits.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXI-6711 entered the NI Maintenance phase on March 31, 2022, it will remain available with Apex Waves. Request your quote today!
