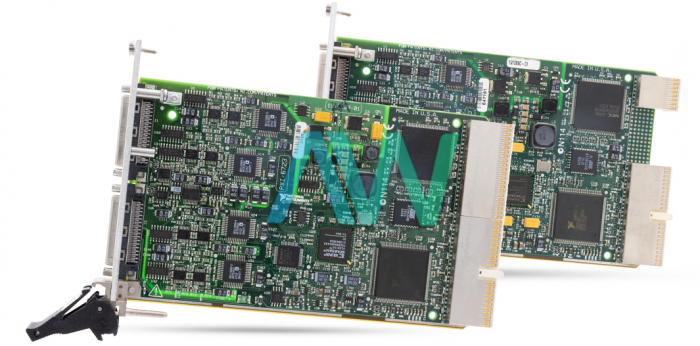

National Instruments PXI-6723 PXI Analog Output Module

The National Instruments PXI-6723 (Part Number: 778998-01) Analog Voltage Output Module offers the capacity to master a multi-application timing and trigger framework. The user can utilize integration technologies like the RTSI bus, the PXI trip bus, and PFI pins which are activated and synchronized with a wide assortment of I/O types. These sorts of I/O range from analog input, motion control, and fast digitizers to multifunction acquisition gadgets. With these integration infrastructures, the user can complete effective and custom test and control frameworks effortlessly. The NI PXI-6723 Analog Output Module highlights NI framework confirmation programs that are intended to additionally encourage the ownership of an NI framework. These programs incorporate setup and implementation services for the NI PXI. The device is equipped with 2 68-pin VHDCI I/O connectors. It has a power requirement of 300 mA at +3.3 VDC, 3 A maximum at +5 VDC, and 1 A at +4.56 to +5.25 VDC.

The NI Basic System Assurance Program gives a basic incorporation test and guarantees that the user’s framework is delivered totally assembled in a box. When the user designs their framework with the NI Standard System Assurance Program, they can choose from the accessible NI framework controller sets and the application improvement environments to make customized and reordered programming arrangements. When the user requests their framework with the standard program, they will get framework particular documentation that incorporates a list of materials, an integration test report, a recommendation maintenance plan, and frequently asked question archives. The PXI-6723 has a recommended warm-up time of 15 minutes, and should be calibrated at least once a year.

The NI device measures 6.3 x 3.9 in. in physical dimensions (excluding connectors). It has a recommended operating temperature range of 0 °C to 50 °C, a storage temperature of -20 °C to 70 °C, and a noncondensing humidity range of 5% to 90% RH. The module has a channel-to-earth working voltage of ±11 V maximum (CAT 1), and a channel-to-channel working voltage of ±22 V maximum (CAT 1).

PXI-6723 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

The PXI-6723 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PXI-6723 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PXI-6723 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PXI-6723!
