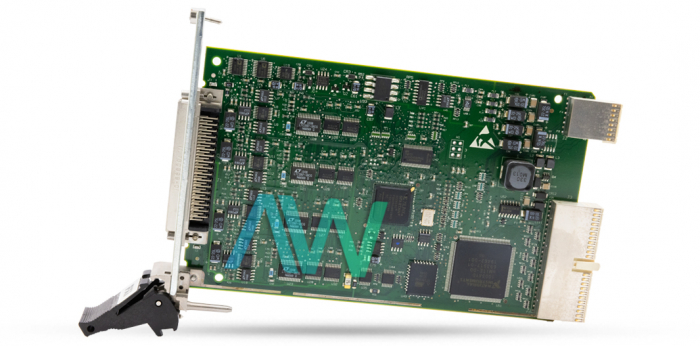

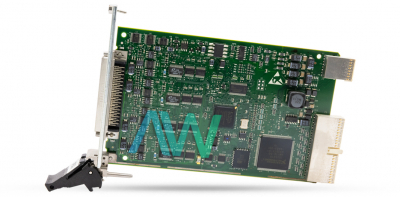

National Instruments PXI-6733 PXI Analog Output Module

The NI PXI-6733 (Part Number: 778512-01, 187995F-01L) has 8 analog output channels with 1 MS/s per channel maximum update rate, 16-bit resolution, an output voltage range of -10 V to 10 V, and advanced triggering. The device has a FIFO buffer size of 16,384 samples, and 3 DMA channels. It has 8 digital I/O channels with a TTL/CMOS compatibility, has 2 counter/timer I/O channels with a resolution of 24 bits, and with base clocks of 20 MHz and 100 MHz. This module utilizes the PXI trigger bus to synchronize with extra data acquisition, motion, and vision items, so the user can make custom estimation solutions for test innovative plans. The PXI-6733 is perfect for stimulus-reaction tests, including acoustic distortion testing and open-loop recreation, such as three-phase power reenactment.

The National Instruments PXI-6733 does not contain DIP switches, jumpers, or potentiometers, so the user can smoothly arrange software and calibrate it. This is conceivable through the NI MXI Interface to Everything (MITE) bus interface chip that links the module to the PCI I/O bus. The MITE actualizes the PCI Local Bus Specification with the goal that the interrupts and base memory addresses are software configured.

The user can introduce the NI PXI-6733 in any accessible PCI framework opening or 5 V PXI extension space in the PC. The user can additionally introduce the DAQ Card-6715 in any accessible CardBus-compatible Type II PCMCIA 5 V PC Card space in the PC. To accomplish the best motion execution, the user can leave as much space as possible between the NI PXI-6733 and different gadgets and equipment.

The NI PXI-6733 Analog Output Module is completely compliant with the business standard, PXI Specification Revision 2.0. This permits the PXI/CompactPCI framework to naturally play out all bus related setups, such as setting the gadget base memory address and interrupt channel, without client interaction.

The device operates using the NI-DAQmx driver software which is compatible with software packages/application development environments like LabVIEW, LabWindows/CVI, or Measurement Studio.

PXI-6733 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

The PXI-6733 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PXI-6733 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PXI-6733 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PXI-6733!
