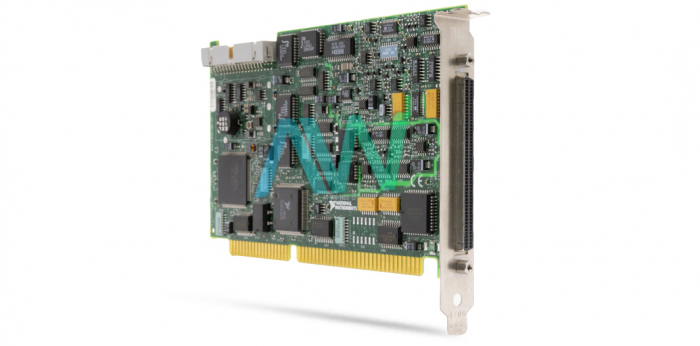

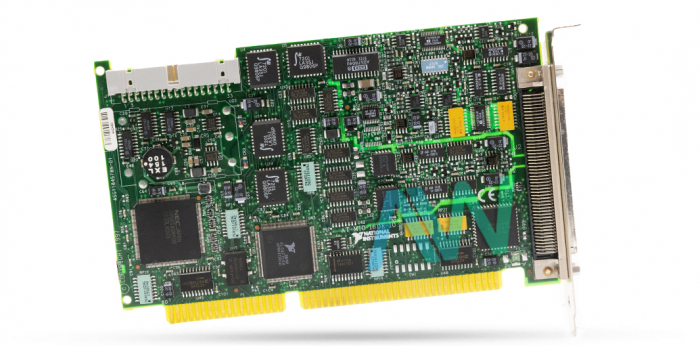

National Instruments AT-MIO-16DE-10 Multifunction DAQ

The AT-MIO-16DE-10 is a Multifunction DAQ by National Instruments. The NI AT-MIO-16DE-10 is available with part numbers 777640-01 and 184578P-01. The NI AT-MIO-16DE-10 is part of the E Series family. The AT-MIO-16DE-10 can be configured with the NI-DAQ legacy driver software on LabVIEW, Measurement Studio, and VI Logger. A CD containing the DAQ designer tool can be purchased and used with Windows (2000/NT/Me) operating systems.

The NI AT-MIO-16DE-10 is also classified as part of the NI-6021E family. This Multifunction DAQ has the capabilities to result in high performance within the protocols of E Series technology, as well as provide useful data acquisition techniques for multiple applications. The NI AT-MIO-16DE-10 is designed for the ISA bus for connections. This Multifunction DAQ has a maximum sampling rate of 100 kS/s. The National Instruments AT-MIO-16DE-10 uses 12-bits resolution for both the input and output channels. The NI AT-MIO-16DE-10 has 16 single-ended or 8 differential analog input channels and 2 analog output channels. The AT-MIO-16DE-10 can additionally perform digital triggering.

The AT-MIO-16DE-10 is configured with 32 digital I/O lines with TTL. The source voltage for these lines is 5V. There are two timers with 24-bits resolution and 20 MHz bandwidth. This Multifunction DAQ can be NIST-calibrated to maintain accuracy. In addition, the National Instruments AT-MIO-16DE-10 can be used with more than 70 signal conditioning accessories. The input/output voltage ranges for the AT-MIO-16DE-10 module are ±0.05 to ±10 V and ±10 V.

AT-MIO-16DE-10 Obsolete Status has been announced by National Instruments, but the multifunction DAQ will still be available for purchase and repairs by Apex Waves.
