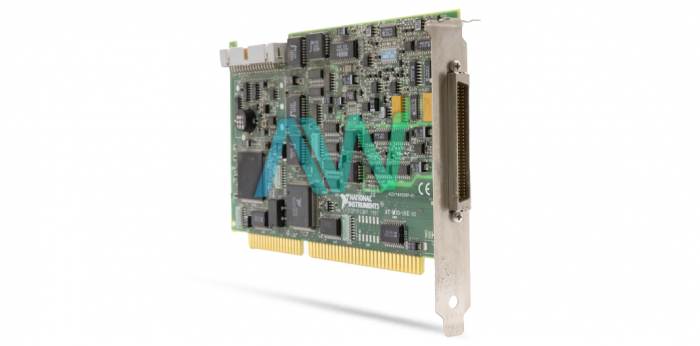

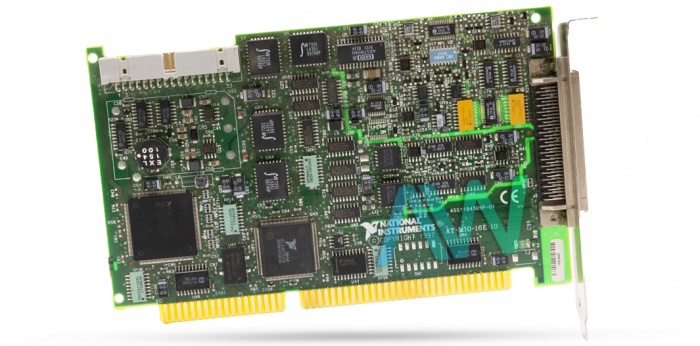

National Instruments AT-MIO-16E-10 Multifunction DAQ

The AT-MIO-16E-10 is a Multifunction Data Acquisition (DAQ) Device designed by National Instruments. The NI AT-MIO-16E-10 is produced with part number 777521-01. The NI AT-MIO-16E-10 comes from the E Series. The AT-MIO-16E-10 uses NI-DAQ drivers. These drivers are compatible with different types of, software including VI Logger, LabVIEW, and Measurement Studio. This Multifunction DAQ can be run on Windows 2000/NT/Me. It comes with a built-in DAQ designer package that supports the Windows Operating System.

The NI AT-MIO-16E-10 Multifunction DAQ uses E Series technology to provide excessive performance and has definitive DAQ capabilities to fulfill the requirements of various applications. The AT-MIO-16E-10 is fabricated for ISA and USB bus types. It takes the sampling rate with the 12-bit resolution to the level of 100 kS/s based on the type of hard drive. The NI AT-MIO-16E-10 is equipped with 16 single-ended analog input channels and two 12-bits analog output channels. This Multifunction DAQ comes with the special feature of digital triggering.

The National Instruments AT-MIO-16E-10 is built with 8 or 32 digital TTL input/output lines with a source voltage of 5V. The time duration can be measured by timers/counters. For this purpose, two 24-bits, 20 MHz timers are available with the DAQ. The NI AT-MIO-16E-10 can be NIST-traceable calibrated. This Multifunction DAQ can be used with over 70 signaling functions. The input voltage range is between ±0.05 to ±10 V, while the output voltage range is up to ±10 V.

AT-MIO-16E-10 Obsolete Status has been announced by National Instruments, but the multifunction DAQ will still be available for purchase and repairs by Apex Waves.
