PCI-6013 Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | PCI-6013 |
| Part Number | 778629-01 |
| Type | Multifunction DAQ |
| Repair Evaluation | $150 |
PCI-6013
Home PCI-6013
| Part Number | PCI-6013 |
| Manufacturer/Brand | National Instruments |
| Description | NI PCI-6013, 16 Analog Input, 16-Bit, Multifunction DAQ |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- FAQ
National Instruments PCI-6013 Multifunction DAQ
The National Instruments PCI-6013 (Part Number: 778629-01) is a Low-Cost, 16-Bit, 200 KS/s Multifunction DAQ. This model offers eight digital Input/output lines and two 24-bit counters. The NI PCI-6013 is designed to sustain counter/timer and digital operations together in parallel with AI operations and is useful for applications where analog outputs are required.
The PCI 6013 National Instruments comes equipped with an SCSI-II type, 68-pin male I/O connector. The two counters incorporated in this module offer buffered operations, 100 ppm time base stability, pulse generation, and TTL logic levels with a maximum range of 0 V, 5 V. This model provides 16 single-ended or 8 differential analog input channels with 200 kS/s maximum achievable sample rate, 10 V maximum voltage, - 10 V to 10 V maximum voltage range, - 20 mV to 50 mV minimum voltage range, and a 16-bit resolution. Also, the device has a DC input coupling.
The NI PCI 6013 comes with an onboard memory capable of storing 512 samples, with a configuration memory size of 512 words. The device has a scatter-gather DMA controller/mode which facilitates the transfer of data to and from multiple memory areas in a single DMA transaction. This DAQ comes in the PCI form factor, is compatible with Windows, Mac OS, and Linux, and supports LabVIEW RT as well. The 8 digital I/O’s of this Multifunction DAQ are software timed bidirectional channels, compatible with TTL logic levels. The digital I/O can handle sinking as well as sourcing inputs and output current flow. The analog outputs of the NI PCI-6013 offer 2 mA current drive signal, while the digital I/O offer 24 mA current drive signal. In its standard configuration, the NI PCI-6013 is offered with one connector block, one cable, and software. The device has a recommended warm-up time of 15 minutes, with a power requirement of +5 VDC to 0.7 A. The PCI-6013 has a weight of 3.5 oz and the dimensions: 6.4 in. x 3.6 in.
PCI-6013 End of Life Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-6013 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778629-01 |
| Series | B Series |
| Type | Multifunction DAQ Card |
| HTS Code | 8471804000 |
| Channels | 16 Analog Inputs (16-Bit, 200 kS/s) or 8 differential 8 Digital Inputs/Outputs (5 V/TTL Compatibility) 2 Counter/Timer I/O (24 bits, 20MHz ) |
| I/O Connector | 68-pin male SCSI-II type |
| Power Requirements | +5 VDC - 0.7 A |
| Dimensions | 6.3 in. × 3.5 in |
| Weight | 3.5 oz. |
| Driver Software | NI-DAQmx |
| Warranty | Three Year Warranty |
| PCI-6013 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PCI-6013 Frequently Asked Questions
Question: Which operating systems are compatible with the NI PCI 6013?
Answer: The NI PCI 6013 is compatible with Windows, Linux, Real-Time, and Mac OS operating systems.
Question: What is the maximum voltage range for the PCI 6013 National Instruments?
Answer: The maximum voltage range for the PCI 6013 National Instruments is -10 V, 10 V.
Question: What does the NI PCI-6013 require for operation?
Answer: The NI PCI-6013 requires a connector block, a shielded cable, and software.
Question: Which type of ADC does the PCI 6013 have?
Answer: The PCI 6013 has a successive approximation ADC.
PCI-6013

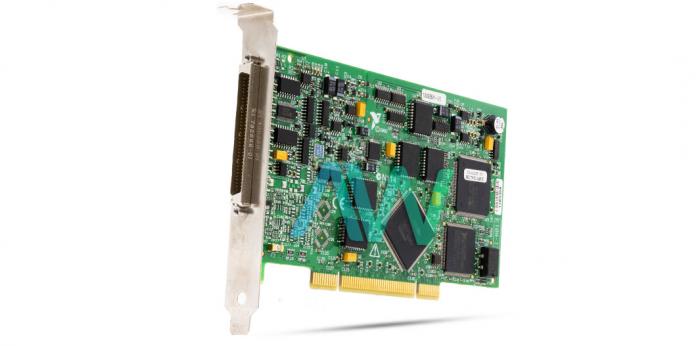

Main Image

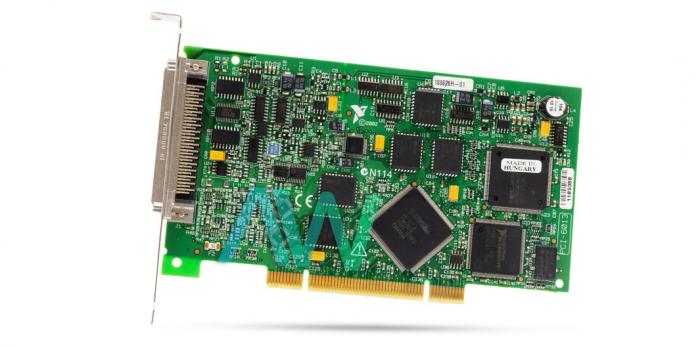

Secondary Image
