National Instruments BNC-2081 Analog Breakout Board

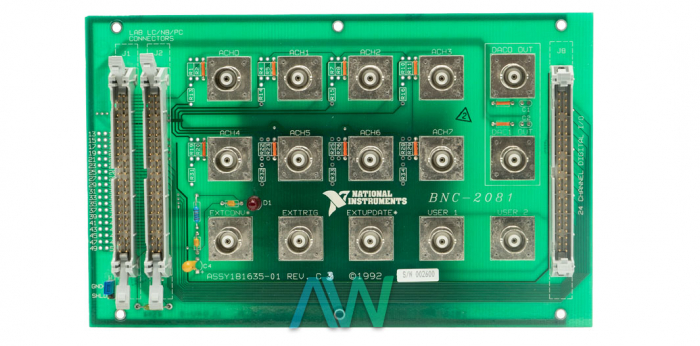

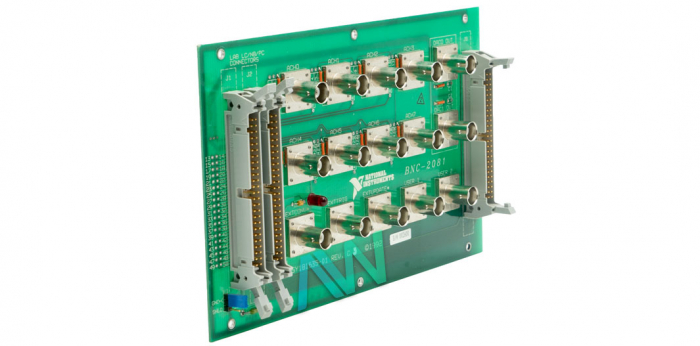

The BNC-2081 is an Analog Breakout Board created by National Instruments. The BNC-2081 is available with different part numbers, depending on if you purchase only the board or the kit with a cable. The part number of the BNC-2081 board is 181635-01 while the part number is 776599-90 for the kit. The BNC-2081 is a part of the BNC-208X family series. The BNC-2081 can be installed without any software required. The BNC-2081 can be operated on Windows as well as MAC operating systems.

The NI BNC-2081 is manufactured for analog signal-labeled breakout boards with BNC connectors. This Analog Breakout Board can provide signaling functions and support. The BNC-2081 can simplify analog and some of the digital signal communication links. The NI BNC-2081 provides a simple method to define two user-defined connections to data acquisition boards for laboratory testing and measurement purposes. The BNC-2081 is utilized with 16 SE or 8 differential analog input channels linked with the board. The board can be linked directly to Lab-LC, Lab-NB, Lab-PC, or Lab-PC+ data acquisition (DAQ) boards.

This Analog Breakout Board can develop voltage dividers, single-pole low-pass/high pass filters with the resistors and capacitors. The BNC-2081 contains 24 BNC connectors for communication purposes. There are two input/output connectors available with 50-male-pins on the BNC-2081 board. The power consumed in the BNC-2081 operation is +5 VDC for the source voltage, while 12 mA of typical current and 750 mA of maximum current are the specifications from the host PC.
