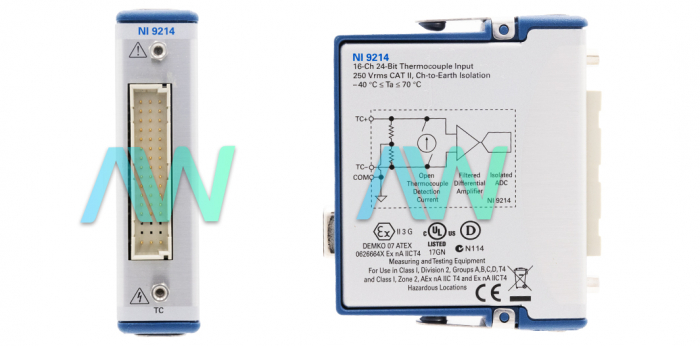

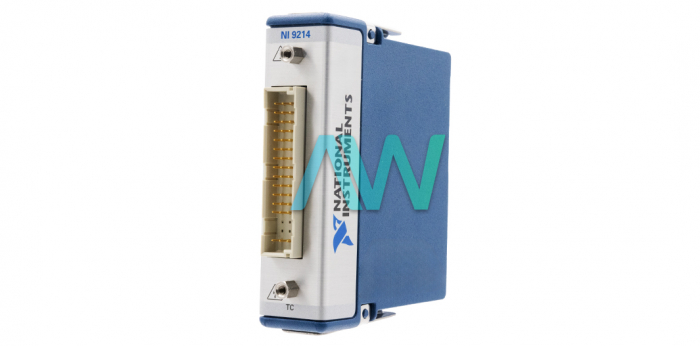

National Instruments NI-9214 C Series Temperature Input Module

The NI-9214 (Part number: 781510-01) is a Temperature Input Module from the C Series manufactured by National Instruments. This module comes with exceptional features and operational accuracy, which allows the user to complete quick measurements as per industry standards. The instrument incorporates sixteen built-in channels. It also has a built-in thermocouple module. This module is a high density, which allows the users to input the data for different measurement requirements. In addition, the NI-9214 implements a mechanism for noise rejection, which is for the frequency of 50/60 hertz. It has 16 differential analog input channels with an analog input isolation of 250 Vrms Ch-Earth ground isolation.

The NI 9214 16-Channel module offers extraordinary sensitivity for measurements. It has the value up to 0.02 degrees C. This module comes with a built-in system to enable the count mechanism for the higher channels. The NI-9214 C Series Temperature Input Module has various accessories available. These accessories include a terminal block which is isothermal and a detailed user guide. The NI 9214 module also offers an exceptional sample rate of 68 samples per second.

The NI-9214 Temperature Input Module has one internal autozero channel, which increases measurement accuracy. Use of the autozero channel is non-compulsory. The module can be used in two modes. For optimized accuracy and noise rejection, high-resolution timing mode gives better results. If fast sampling and high bandwidth are required, high-speed timing mode is recommended. The NI-9214 module has the maximum power consumption of 300 mW in active mode. In sleep mode, the maximum power consumption reduces to 30 μW.

The NI-9214 is run using the NI-DAQmx driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, LabVIEW FPGA Module, LabVIEW Real-Time Module, ANSI C, and .NET. The device can be self-tested using the NI Measurement & Automation Explorer (MAX) tool.

The NI device weighs 5.0 oz. It has a recommended operating temperature range of -40 °C to 70 °C, a storage temperature range of -40 °C to 85 °C, a random operating vibration of 5 grms (10 Hz to 500 Hz), and a sinusoidal operating vibration of 5 g (10 Hz to 500 Hz).
