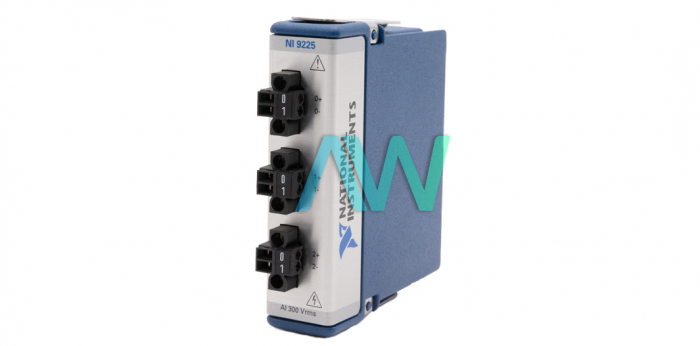

National Instruments NI-9225 C Series Voltage Input Module

The NI 9225 (Part Numbers: 780159-01 and 780159-02) 300 Vrms C Series Voltage Input Module was intended for the waveform estimations of high-voltage signals. The difference between the two NI 9225 part numbers is that part number 780159-02 is conformal coated, while part number 780159-01 is not. The 300 Vrms area empowers line-to-nonpartisan and additionally line-to-line estimations of 110 V control frameworks and line-to-impartial estimations of 240 V control networks. The three channels on the NI 9225 make the module perfectly suited for a three-stage framework. Voltage waveform estimations are fundamental for observing force quality occasions, such as hang, swell, transients, and harmonics. If the user chooses to put together the NI 9225 with the NI 9239 (10 V) and a current transducer, the outcome is an adjustable power quality checking or power metering framework.

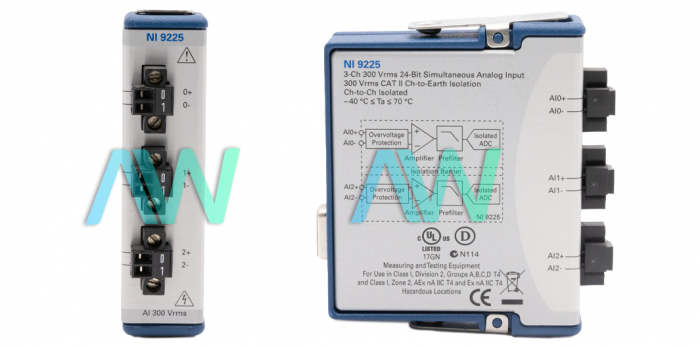

NI C Series modules are intended to give high-exactness estimations to meet the requests of last generation DAQ and control applications. Every module contains estimation-particular signal molding to connect with a variety of sensors and signals, bank and channel-to-channel seclusion alternatives, and support for wide temperature extents to meet an assortment of use and natural needs in one durable module. Users can select from more than 100 C Series modules for estimation, control, and communication to interface applications to any sensor on any transport. The device is equipped with a screw terminal front connector.

The NI-9225 C Series Voltage Input Module comes with the following characteristics:

- 3 differential analog input channels, synchronous sources of info

- 50 kS/s per channel maximum sample rate, and a minimum sample rate of 1.613 kS/s

- Minimum and typical operating voltage ranges of 294 Vrms and 300 Vrms respectively

- Channel-to-channel disconnection

- Synchronize high-voltage estimations

- Program for USB with the simple to utilize NI-DAQmx driver software

- 24-bit analog input resolution

The NI device weighs 5.0 oz. It has a recommended operating temperature range of -40 to 70 °C, and a storage temperature range of -40 to 85 °C. The device has a power consumption of 495 mW maximum when in active mode, and 25 µW maximum in sleep mode.

The NI-9225 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the NI-9225 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the NI-9225 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the NI-9225!
