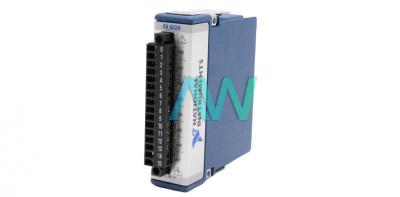

National Instruments NI-9228 C Series Voltage Input Module

The NI‑9228 (Part Number: 783861-01) comes with the following characteristics: ±60 V input voltage range, 1 kS/s/ch sample rate, 24-Bit resolution, simultaneous inputs, and 8 channels. In addition to what was previously mentioned, this module belongs to the C Series, which represents signals that are inside the passband, as passband evenness and stage nonlinearity are vital when the measure of the signal is taking place. It is important to highlight that every signal that is identified in the alias-free bandwidth are either non-associated signals or signals that have already been filtered by at any rate the measure of the stopband dismissal.

The alias-free bandwidth on the NI 9228 module is characterized by the capacity of the filter to dismiss frequencies over the stopband frequency, and it is equivalent to the information rate of the stopband frequency.

This module supports a low-energy rest mode. Support for rest mode at the framework level relies upon the chassis that the module is connected to. Allude to the chassis manual for data about help for rest mode. If the chassis supports rest mode, allude to the program help for data about empowering rest mode.

The frequency of a master timebase (fM) controls the data rate (fs) of the NI 9228. The NI 9228 incorporates an interior master timebase with a frequency of 12.8 MHz. However, the module additionally can acknowledge an outer master timebase or export its own master timebase. To synchronize the information rate of an NI 9228 with different modules that utilization master timebases to control examining, the majority of the modules must share a solitary master timebase source.
