National Instruments NI-9375 C Series Digital Module

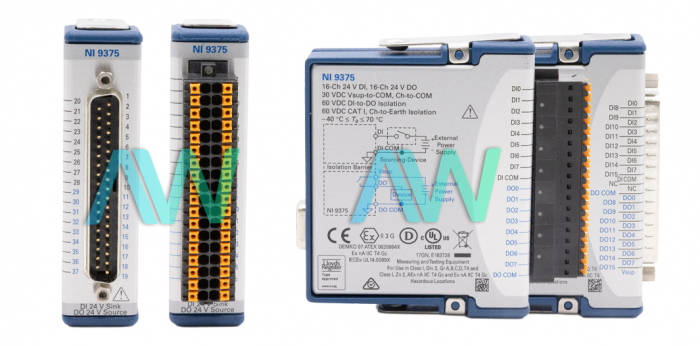

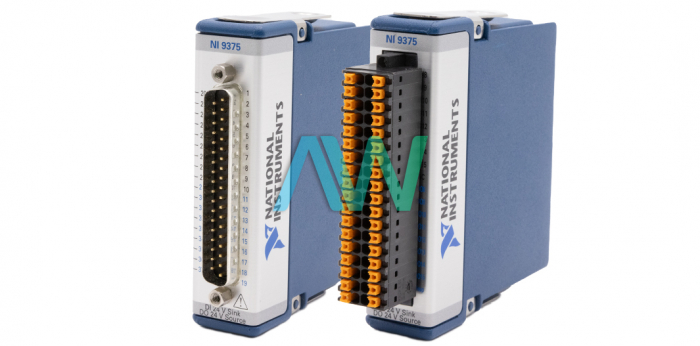

The NI-9375 (Part Numbers: 785192-01, 781030-01, 781030-02, and 199270A-01L) is a C Series Digital Module and a mix of computerized input, advanced yield that works with NI CompactDAQ or CompactRIO hardware platforms. Part number 785192-01 has a Spring Terminal front connector and 250 Vrms Ch-Earth Ground Isolation, while part numbers 781030-01 and 781030-02 have D-Sub front connectors and 60 VDC Ch-Earth Ground Isolation. Part number 781030-02 is the only configuration of the NI-9375 that is conformal coated.

It has 16 digital input and 16 digital output channels. Every one of the 16 channels are compatible with 24 V logic levels. The greater part of the 16 devoted computerized yield lines are good with 6 V to 30 V signals, in view of the outside power supply. Although the advanced information and computerized yield lines share a similar planning motor, take note that the advanced yield line has a maximum spread postponement of 500 μs. The NI 9375 offers 60 V of isolation between the information and yield banks and highlights 1,000 Vrms withstand separation from channel to earth ground. It works with modern rationale levels and signals for guide association with a wide exhibit of mechanical switches, transducers, and different gadgets.

With the NI-9375, it is possible to take vibrations or duty cycle. The counter measures the high and low spans of a pulse on a signal. Utilizing the deliberate qualities, it gives users the chance to find the duty cycle of the signal. The NI-9375 C Series Digital Module returns the present estimation amounts when the counter is analyzed. The estimation esteems are comprised of the high and low circumstances of the beat in the quantity of ticks of the 100 MHz counter timebase. The module has a power consumption level of 450 mW maximum when in active mode, while it consumes 25 μW maximum when in sleep mode.

The spring terminal fitted model of the NI device weighs 5.8 oz, while the D-SUB fitted model weighs slightly less at 5.3 oz. It has recommended operating and storage temperature ranges of -40 °C to 70 °C and -40 °C to 85 °C respectively.
