National Instruments NI-9852 C Series CAN Interface Module

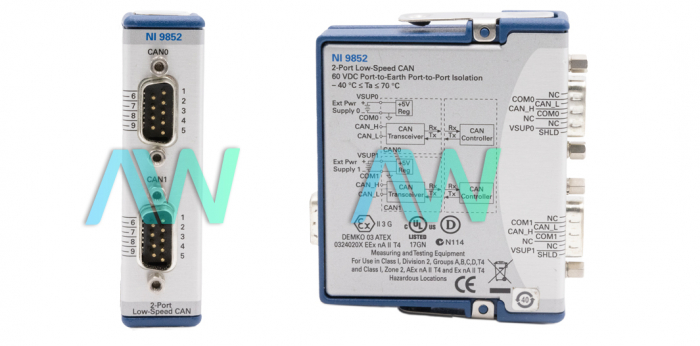

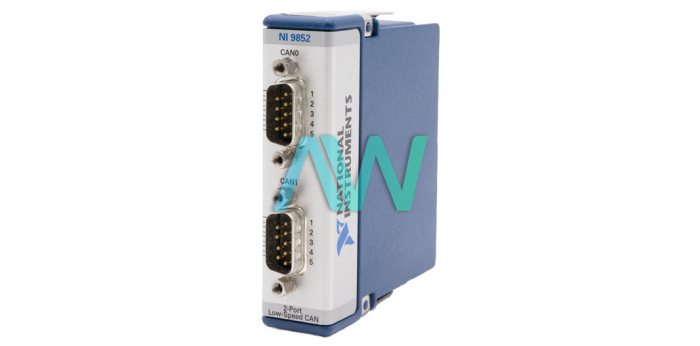

The NI 9852 (Part number: 779707-01) has two 9-stick male D-Sub connectors that give associations with a CAN transport. In this instrument, all the signals ought to be associated utilizing contorted match link. Each slot comes with two disengaged regular pins (COM) associated internally with the segregated reference of the module. Users can interface the CAN bus reference ground (some of the time alluded to as CAN_V–) to the COM pin. Each port also has a discretionary shield stick, SHLD, that can be associated with a protected CAN link. Associating SHLD may enhance signal integrity and EMC execution in a loud situation. The most extreme quantity of nodes relies upon the electrical attributes of the nodes on the system. If the greater part of the nodes meets the necessities of Low-Speed/Fault-Tolerant CAN, more than 32 nodes might be associated with the bus.

This National Instruments CAN Interface Module comes with two full-included, autonomous CAN slots independent from each other and from alternate modules in the framework. Every slot that is part of the NI-9852 completely underpins 11 and 29 bit identifiers thanks to its Philips SJA1000 CAN controller named CAN 2.0B-compatible. Every port comes with a Philips TJA1054A Low-Speed/Fault-Tolerant CAN that is completely compatible with the ISO 11898 standard and backings baud rates up to 125 Kbps This framework rest mode should not be mistaken for the NI 9852 Transceiver Mode Sleep property, which sets only the CAN port to rest mode.
