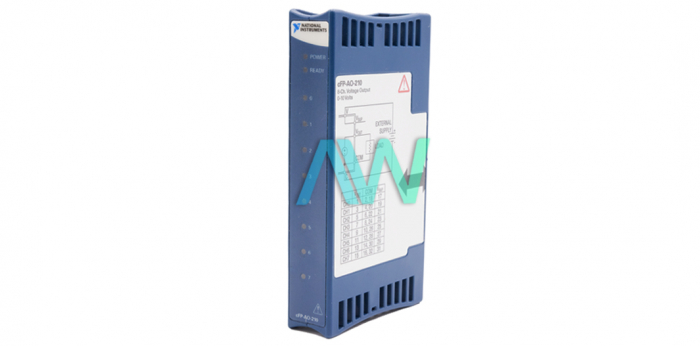

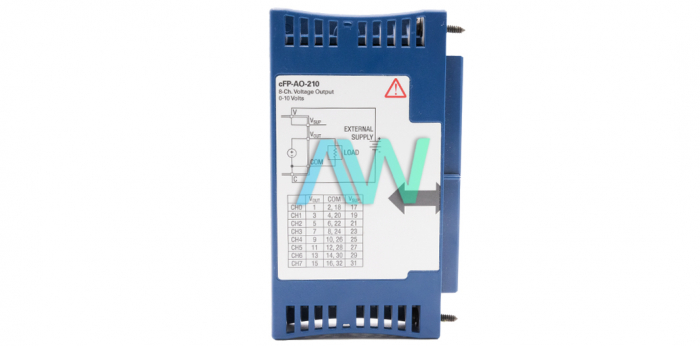

National Instruments cFP-AO-210 Analog Output Module for Compact Fieldpoint

The cFP-AO-210 (Part number: 777318-210) incorporates eight 0 to 10 V yield channels, created with a 12-bit DAC. Each channel gives a voltage source fit for providing up to 1 mA. This model allows the user to obtain more than 10 mA by controlling the module with a discretionary outside power supply of 30 and 15 VDC.  Also, the model has an all channel update rate of 200 Hz. The NI cFP-AO-210 gets a working force from the terminal base. The current circle control is remotely provided. Vout is the name of every channel that comes with an output terminal; a typical terminal, COM; and Vsup, which is a supply terminal. The considerable number of channels that belong to the COM terminals are associated inside to each other and to the C terminals.

The processing plant default control up setting for each channel is 0 V. The NI cFP-AO-210 has an overranging value of 0.2 V. Along these lines, the real full-scale scope of each channel is 0– 10.2 V. This expanded range empowers the cFP-AO-210 to adjust for length and balance errors in field gadgets. The cFP-AO-210 comes with channels that include an observing circuit that distinguishes the measure of current streaming into or out of the channel. If this esteem surpasses the most extreme suitable value (1 mA with no outside supply; 10 mA with outer supply), the circuit lights a red STATUS pointer for each influenced channel, reports the mistake to the system module, and alters the yield voltage so only the greatest permitted current streams. The mistake is accounted for before the yield is balanced. The device has a maximum conversion rate of 200 updates/s, and a slew rate of 0.5 V/µs.

The NI device weighs 4.1 oz, and measures 5.00 x 2.60 x 0.94 in. in physical dimensions. It has a recommended operating temperature range of –40 to 70 °C, a storage temperature range of .–55 to 100 °C, a random operating vibration of 5 grms (at a frequency of 10 to 500 Hz), and a sinusoidal operating vibration of 5 g at a frequency of 10 to 500 Hz.

The cFP-AO-210 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the cFP-AO-210 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the cFP-AO-210 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the cFP-AO-210!
