cRIO-9076 Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | cRIO-9076 |
| Part Number | 781716-01 |
| Type | CompactRIO Controller |
| Repair Evaluation | $150 |
cRIO-9076
Home cRIO-9076
| Part Number | cRIO-9076 |
| Manufacturer/Brand | National Instruments |
| Description | cRIO-9076, 4-Slot, Xilinx Spartan-6 LX 45 FPGA, CompactRIO Controller |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- FAQ

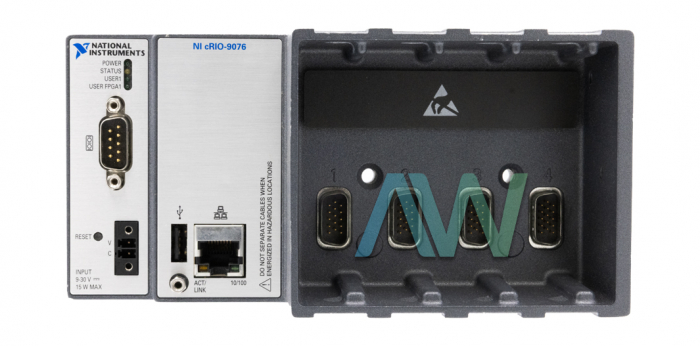

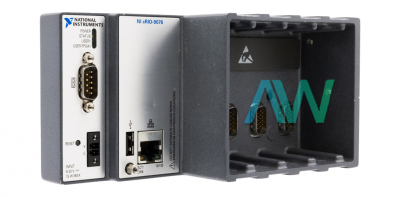

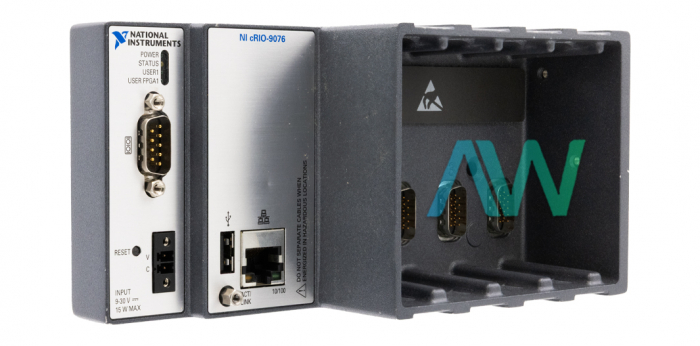

National Instruments cRIO-9076 CompactRIO Controller
Featured with a powerful FPGA (Spartan-6 LX 45 by Xilinx) and 1.33 GHz Dual-Core Processer, the National Instruments cRIO-9076 (Part Number: 781716-01) is a CompactRIO Controller. This robust, integrated system contains a reconfigurable chassis and a real-time embedded controller. The NI cRIO-9076 has four ports and comes equipped with 2 GB DRAM. This model is far more effective than the previous ones as it comes with massive, 32 GB internal storage, and a USB port, in addition to RJ-45 Ethernet and serial ports. The RS-232 Serial Port offers 230,400 bps baud rate, 5, 6, 7, 8 data bits, and 1, 2 stop bits.
The Spartan-6 LX 45 FPGA in this Controller offers 54,576 flip-flops, 27, 2886-input LUTs, 58 DSP48s, 5 DMA channels, and 2,088 Kbits block RAM. The cRIO NI 9076 can be operated over an input range of 9 V to 30 V. This CompactRIO Controller weighs around 643 g and the physical dimensions are 7.0 in. × 3.4 in. × 2.5 in. The new four-slot system is compatible with VxWorks operating system, the NI Serial driver software, and supports almost all industry leading software programs, including the LabVIEW Real-Time Module and the LabVIEW FPGA Module.
The USB ports of the cRIO 9076 can handle peripheral as well as mass storage devices. Moreover, the FTP server provided by the Ethernet port of the Controller can also be used for retrieving data from the onboard storage of the NI cRIO 9076. With the Measurement & Automation Explorer (MAX) tool, the user can configure various controller startup options, including No App, IP Reset, Safe Mode, and Console out etc. The controller has a power consumption value of up to 15 W, and a recommended power supply of 24 W/24 VDC.
The NI device has a recommended operating temperature range of -20 °C to 55 °C, a storage temperature range of -40 °C to 85 °C, non-condensing operating and storage humidity ranges of 10% RH to 90% RH and 5% RH to 95% RH respectively, random and sinusoidal operating vibrations of 5 grms and 5 g respectively–all at a frequency range of 10 to 500 Hz.
| Model | cRIO-9076 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 781716-01 |
| Type | CompactRIO Controller |
| Slots | 8 |
| CPU Frequency | 1.33 GHz |
| Storage | 32 GB |
| Dimensions | 7.0 x 3.4 x 2.5 in. |
| Weight | 22.7 oz. |
| Warranty | Three Year Warranty |
| cRIO-9076 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments cRIO-9076 Frequently Asked Questions
Question: What does a “break” mean when using the National Instruments NI cRIO-9076 if the unit has stopped functioning?
Answer: If you get a “break” message on the National Instruments NI cRIO-9076, it means the timed loop has hit a serious issue. Try to switch your timed loops to regular while loops in the application.
Question: How do I process the digital input data to get a numeric position output when using a cRIO 9076 and NI-9401 to read an absolute encoder?
Answer: When using the cRIO 9076 with the NI-9401, if you’re attempting to get a numeric output, you need to configure a clock output and SSI data input line on the NI-9401.
Question: How do I save data from the NI cRIO-9076 to the PC?
Answer: To save data from the NI cRIO-9076 to the PC, you can use Network Shared Variables or Network Streams.
cRIO-9076
Main Image
Secondary Image
cRIO-9076, 4-Slot, Xilinx Spartan-6 LX 45 FPGA, CompactRIO Controller
Call
919 809 5227
Rated 0/5 based on 0 ratings.
- cRIO-9076 Technical Specifications
| Manufacturer: | National Instruments |
|---|---|
| Model: | cRIO-9076 |
| Part Number: | 781716-01 |
| Type: | CompactRIO Controller |
| Repair Evaluation: | $150 |
