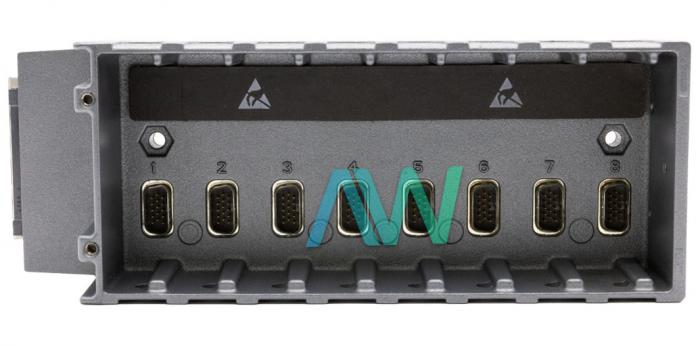

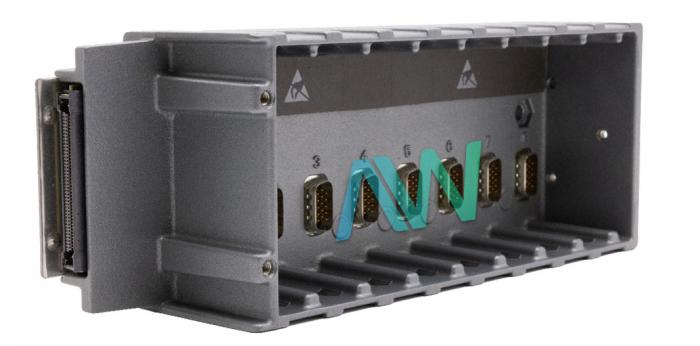

National Instruments cRIO-9104 CompactRIO Chassis

With the cRIO‑9104 (Part Numbers: 779054-02 and 779054-01), each CompactRIO I/O module contains worked in signal molding and screw terminal, BNC, or D-Sub connectors. By coordinating the connector intersection enclose to the modules, the CompactRIO framework fundamentally lessens the space necessities and cost of field wiring. The 3M Gate device is equipped with 8 slots, has 5,120 logic slices, and an embedded RAM of 81, 920 bytes. An assortment of I/O composes are accessible including ±80 mV thermocouple inputs, ±10 V synchronous inspecting simple sources of input/outputs, and 24 V modern computerized I/O with up to 1 A of current. Utilizing the LabVIEW FPGA Module and reconfigurable equipment innovation, the user can make ultra-high execution control and procurement frameworks with CompactRIO. The FPGA hardware is a parallel preparing reconfigurable processing motor that executes the LabVIEW application in silicon hardware on a chip. The LabVIEW FPGA Module highlights fifth-arrange FIR channels, 1D look-into tables, straight insertion, zero intersection identification, and direct advanced union of sine waves.

Utilizing the implanted RIO FPGA equipment, the user can execute multi-loop simple PID control frameworks at circle rates surpassing 100 kS/s. Computerized control frameworks can be actualized at circle rates up to 1 MS/s. Different rungs of Boolean logic can be assessed utilizing single-cycle while circles at 40 MHz (25 ns). Despite the parallel idea of the RIO center, including extra calculations does not really decrease the speed of the FPGA application. CompactRIO offers 4 and 8-opening chassis with choices for FPGA chips with either 1 million or 3 million entryways.

The NI cRIO-9014 is structured with 128 MB of DRAM memory, and has a maximum data transfer rate of 12 MB per second. It is also furnished with a minimum of 2 GB of nonvolatile storage. The device is equipped with a SMB connector, a RS-232 serial port, a USB port, and a RJ-45 Ethernet port.

This model offers small, tough, modern control and procurement framework and a powered by reconfigurable I/O (RIO) FPGA innovation for high execution and customization. The NI device weighs 17.2 oz., and measures 3.6 x 3.0 x 3.5 in. in physical dimensions.
