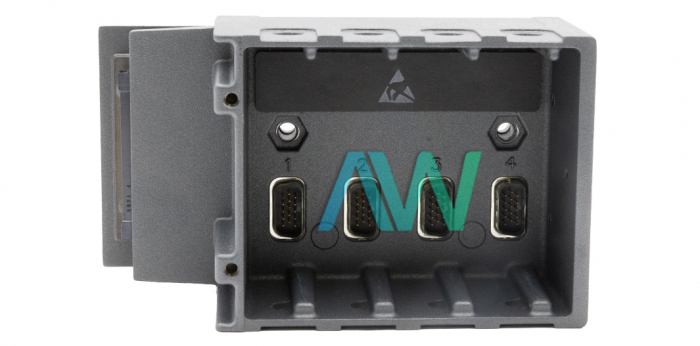

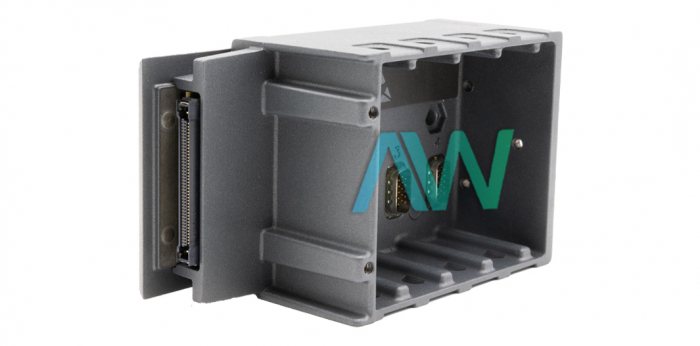

National Instruments cRIO-9111 CompactRIO Chassis

The cRIO‑9111 Chassis (Part Number: 780915-01) is intended for applications in critical situations and little places. Size, weight, and I/O channel thickness are basic outline necessities in numerous such installed applications. By exploiting the outrageous execution, little size, and lower control utilization of FPGA gadgets, CompactRIO can convey exceptional control and securing capacities in a smaller, tough bundle. The NI cRIO-9111 has a Virtex-5 LX30 FPGA and 1,152 kbits block RAM. This 4-slot CompactRIO Chassis additionally has dimensions of 7.07 by 3.47 by 3.47 in. and weighs only 3.47 lb.

CompactRIO is a reconfigurable inserted framework that consolidates solid remain solitary installed ability with outrageous mechanical confirmations and appraisals for task in cruel modern conditions. The cRIO 9111 Chassis has 50 g stun and perilous areas or conceivably hazardous conditions (Class I, Div 2). Most I/O modules used with this model include up to 2,300 Vrms confinement (withstand), as well as 250 Vrms disengagement (consistent). Every segment accompanies an assortment of universal wellbeing, electromagnetic similarity, and natural validations and evaluations.

The LabVIEW improvement condition, including the LabVIEW FPGA Module and LabVIEW Real-Time Module, gives a variety of apparatuses and innovations to quicken the advancement of dependable reconfigurable inserted frameworks. The NI cRIO-9111 CompactRIO Chassis is a hot-swappable modern I/O module with worked in signal molding for guide association with sensors and actuators. This model also allows the user to design their own particular custom control or securing hardware in silicon with 25 ns timing/activating goals.
