National Instruments sbRIO-9651 CompactRIO System on Module

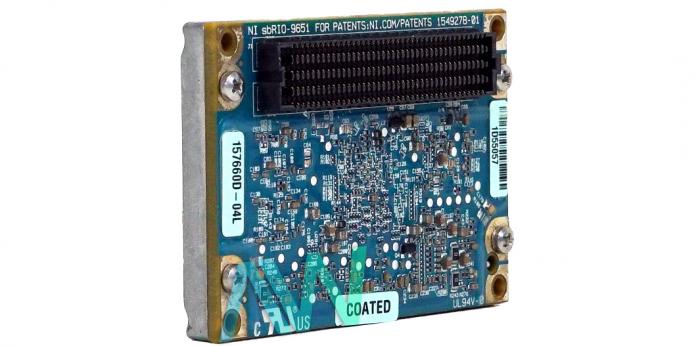

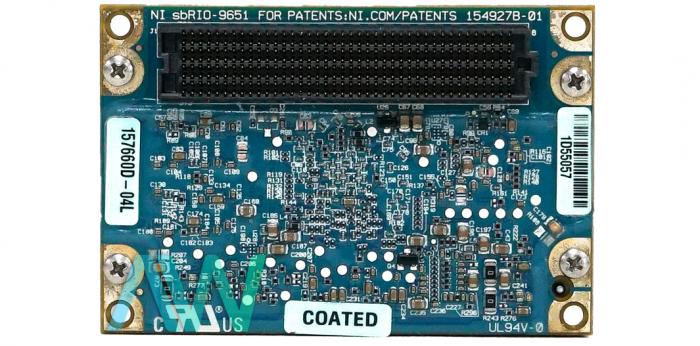

The sbRIO-9651 (Part Numbers: 783525-01, 783525-02, 783525-03) is a CompactRIO System on Module. Part number 783525-01 is a SOM Development Kit and part number 783525-02 is an OEM Kit. Part number 783525-03 is the conformal coated version of the OEM kit. The sbRIO-9651 comes from the manufacturer National Instruments. This module works with the NI-RIO Device Drivers August 2014 or later. The sbRIO-9651 also supports LabVIEW software, including LabVIEW FPGA Module 2014 or later, LabVIEW 2014 or later, and LabVIEW Real-Time Module 2014 or later. The NI sbRIO-9651 module can be used with the AlphaNovatech, S01LZZ0E-A heat sink and several types of mating connectors. The sbRIO-9651 is designed to be used with the NI Linux Real-Time (32 bit) operating system.

The National Instruments sbRIO-9651 is equipped with a reconfigurable Xilinx Zynq-7020 FPGA. The sbRIO-9651 is designed with an ARM Cortex-A9 architecture. The NI sbRIO-9651 is built with a processor speed of 667 MHz. The sbRIO-9651 contains a dual-core processor. The sbRIO-9651 has a DRAM volatile memory of 512 MB. This module also features a non-volatile memory of 512 MB. This CompactRIO System on Module is designed, validated, and assessed for dependable and high-volume OEM applications.

The NI sbRIO-9651 is assembled with serial ports, such as USB, RS-232, and RS-485. The sbRIO-9651 has a maximum data rate of 480 MB/s for USB interfaces. This CompactRIO System on Module features CAN0 and CAN1 support as well. The NI sbRIO-9651 has Ethernet support as well.

sbRIO-9651 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
