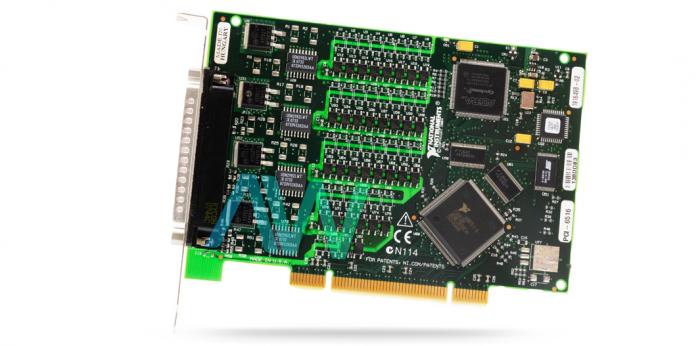

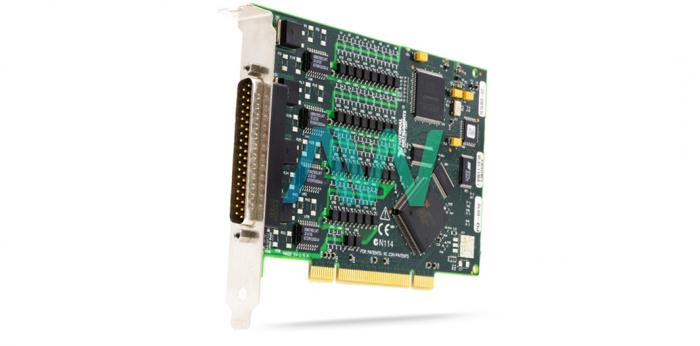

National Instruments PCI-6516 Digital I/O Device

The PCI-6516 (Part Number: 779082-01) comes with a watchdog clock that is a product configurable component used to set basic outputs to safe states in case of a product failure, a framework crash, or some other loss of communication between the application and the NI PCI-6516 device. When the watchdog clock is empowered, if the NI PCI 6516 device does not get a watchdog reset programming summon inside the time indicated for the watchdog clock, the outputs go to a client characterized safe state. The outputs stay in that state until the watchdog clock is incapacitated by the application and new qualities are composed, the NI PCI-6516 gadget is reset, or the PC is restarted. The lapse signal that demonstrates a terminated watchdog will keep on asserting until the point that the watchdog is incapacitated. You can set the watchdog clock timeout period to indicate the measure of time that must pass before the watchdog clock lapses. The counter on the guard dog clock is configurable up to (232 – 1) × 100 ns (around seven minutes) previously it terminates.

In this model, the output lines are comprised of photocouplers and Darlington exhibits. To associate with these signals, interface a 5 V to 30 V control supply to VCC, associate COM (GND) to ground, and cross a heap between advanced output and COM (GND). Applying a DC voltage of no less than 11 V over the two input terminals enlists a rationale high for that information. If there is not any voltage available (a voltage of 4 V or less), the gadget enlists a logic low for that input. DC voltages between 4 V and 11 V are invalid and enroll an untrustworthy esteem.
