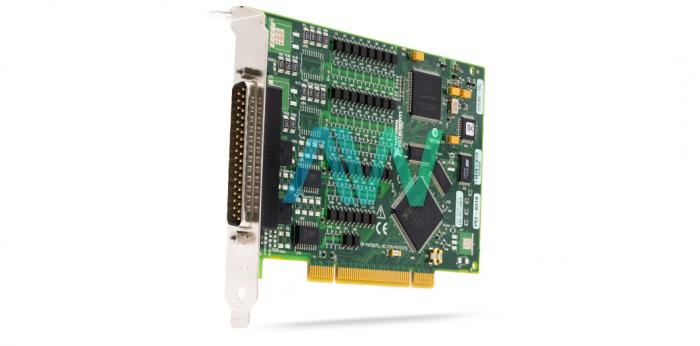

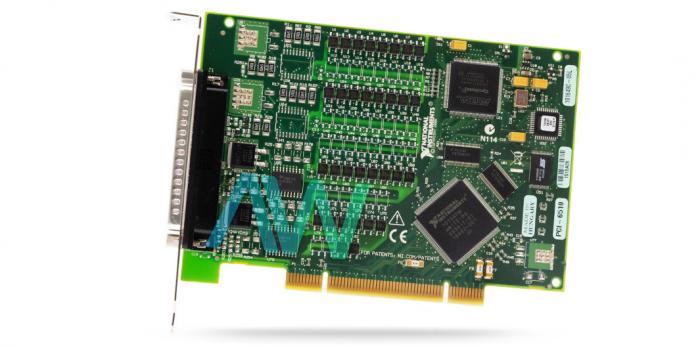

National Instruments PCI-6519 Digital I/O Device

The PCI–6519 (Part Number: 779085-01) has an advanced planning and activating usefulness on information procurement gadgets that regularly depend on locally available counters and complex signal steering to accomplish specific equipment coordinated execution. NI's I/O innovation offers totally autonomous example clocks and triggers for each extraordinary gathering of I/O on a gadget. Re-triggerable acquisitions, for instance, waiting for a trigger condition to be met, taking a limited number of tests, and afterward quickly rearming the trigger for the following acquisition. The PCI 6519 has 16 source/sink input lines and 16 sink output lines, a maximum input voltage and current of ±30 VDC and 12.5 mA/line respectively, and a propagation delay of 75 μs.

Utilizing driver programming capacity calls to rearm the trigger dangers missing the following trigger because of programming inertness. In this manner, the most ideal execution requires an equipment planned approach. Before, counters were the best way to execute equipment coordinated retriggering; thus, counters would be utilized to produce a retriggerable pulse train, which was then inside directed to go about as the simple input test clock. Gadgets with cutting edge timing capacities, such as the NI PCI 6519 can play out this kind of activity locally, which extraordinarily improves the equipment programming and estimation arrangement process.

The digital I/O device can be programmed using software packages or application development environments such as the NI-DAQmx driver software, LabVIEW, or LabWindows/CVI.

Self-adjustment gives the capacity to describe nonlinearity, gain, and counterbalance blunders in I/O Devices. These progressions are caused by deviations in the working condition and in addition producing varieties in the incorporated hardware that may have moved since the last outer alignment. Upheld gadgets utilize an incorporated self-adjustment calculation called NI-MCal to describe and spare the amendment polynomials to a locally available EEPROM in a matter of seconds. The PCI 6519 is equipped with a 37-pin male D-SUB I/O connector.

The PCI 6519 weighs 2.5 oz, and measures 5.54 x 4.47 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 °C to 55 °C and –20 °C to 70 °C respectively.
