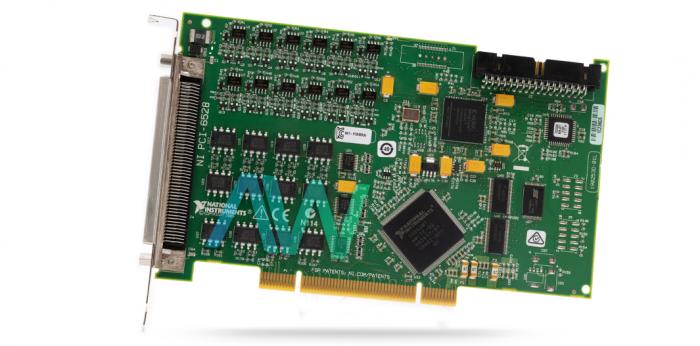

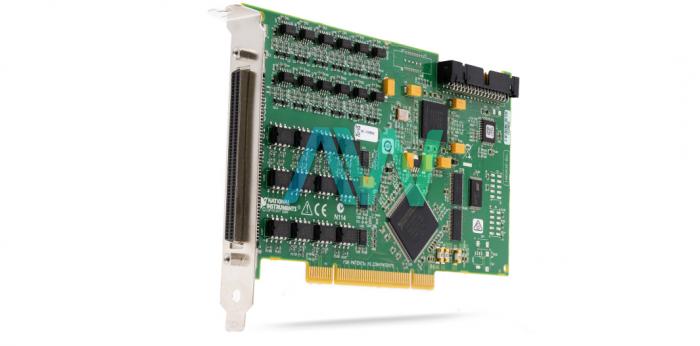

National Instruments PCI-6528 Digital I/O Device

The NI PCI-6528 (Part Number: 778833-01) Digital I/O Device is an industrial channel-to-channel isolated Digital I/O Device for PCI. The user can utilize the optically isolated inputs of the PCI NI 6528 to examine the status of sensors, actuators, and logic gadgets. The NI PCI 6528 has 24 sink/source outputs to switch gadgets with input streams up to 150 mA. Since this device has high current drive and isolation, the NI PCI-6528 device is perfect for an assortment of uses from automotive outline, modern industrial facility computerization, and machine control to aviation, lab research, and biomedical applications. This Digital I/O Device is created to utilize the most recent technology for applications requiring convenience, dependability, and execution. The PCI 6528 card is jumper-free and allows the user to utilize NI-DAQmx driver software programming to accelerate application improvement with highlights such as the DAQ Assistant, programmed code generation, and superior multithreaded streaming innovation. It can be programmed using software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio.

The National Instruments NI PCI-6528 device gives channel-to-channel confinement where each channel is physically and electrically isolated from the others and earth ground. Optical isolators isolate the high-voltage front end from the low-voltage back end, breaking ground loops, enhancing basic mode voltage dismissal, and shielding PC hardware from dangerous voltages. Modern conditions containing hardware and inductive burdens expect segregation to shield the gadgets from transient voltage spikes and give more noteworthy normal mode commotion dismissal.

Other useful features of this Industrial Digital I/O Device include: programmable power-up states, programmable input filters to get rid of glitches and noise, change detection, digital I/O watchdog timers, isolation with a massive voltage range for linking to industrial actuators and sensors, and industrial certifications from CDE, CE, UL, C-Tick, and FCC which guarantee compliance with EMI in many areas of the world.

The NI device weighs 3.8 oz, and measures 6.9 x 4.2 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 55 °C and –20 to 70 °C respectively, operating and storage humidity ranges of 10 to 90% and 5 to 95% respectively.
