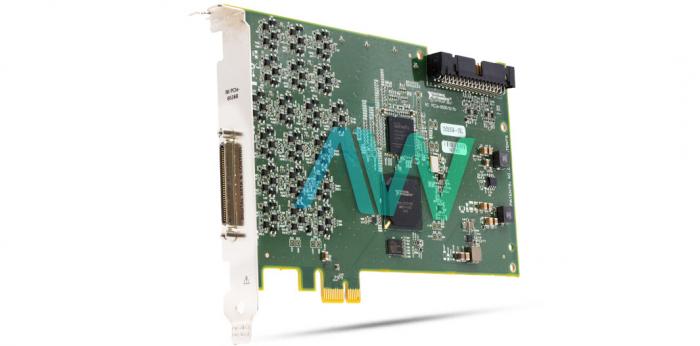

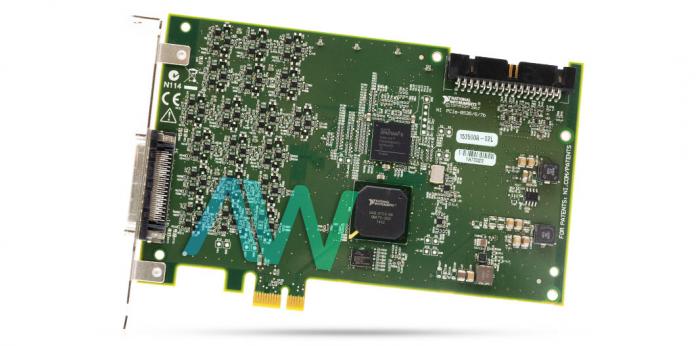

National Instruments PCIe-6536B Digital I/O Device

The PCIe-6536B is a Digital I/O Device by National Instruments. The part number of the device is 782630-01. The PCIe-6536B is used to transfer digital signals. This device supports continuous data streaming. The PCIe-6536B uses a PCI express bus for data transfer. The PCIe-6536B is compatible with the NI Digital Waveform Editor. This feature is very useful for creating, editing, and importing digital waveforms. The PCIe-6536B can be interfaced with the NI-6533 and the NI-6534 applications. The PCIe-6536B also supports handshaking, which enables the device to support bidirectional communication. This device gives high signal integrity and impedance matching, along with immunity to noise, jitter, and glitches due to built-in filters.

The PCIe-6536B Digital I/O Device is equipped with 38 channels. 32 channels are data channels and the other six channels are PFI channels. Each channel is independently programmable. The PCIe-6536B does not feature any dedicated input only or output only channels. The current drive of the I/O channels is 32 mA.  The generation voltage levels of this device are 2.5 V and 3.3 V. The output impedance of the PCIe-6536B is 50Ω. The input impedance has a value of 50 kΩ.

The PCIe-6536B Digital I/O Device comes with a NI-DAQmx driver and LabVIEW ExpresVls software. This device is used in a variety of applications. It is ideal for high-speed and fast-streaming applications. The PCIe-6536B is used in LCD testing, digital pattern capture, and wireless protocols. This device also supports synchronization with several devices. This feature allows the device to create complex synchronized systems.
